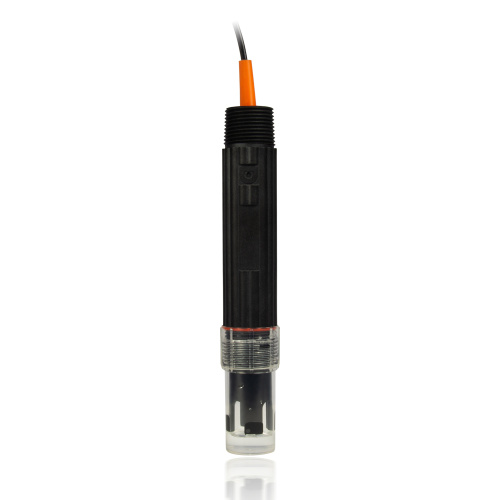

PPS 1500mV Platinum Drinking Water ORP Sensors Probe



PPS 1500mV Platinum Drinking Water ORP Sensors Probe

Get Latest Price

Measuring range	-1500~1500mV
option	5 meters 10 meters 15 meters
Contact Now

Model No.: ASR400

Brand: daruifuno

Certification: ISO9001

Signal Type: Analog

Working Temperature: 0~100℃

Shaft Material: PPS

Support Customization: Oem

Place Of Origin: China

Measuring Range: ±1500mV

Working Pressure: 0~6Bar

Dimension: Diameter 35mm/Length 200mm

Description

Product Description

The ORP value refers to the size of the oxidation-reduction potential in water, and is one of the important indicators to measure the oxidation-reduction properties of water. Monitoring the ORP value in water can help people understand information such as water quality, ecological status of water body, and pollutants in water, which is of great significance for protecting the water environment and human health. An Analog Orp Sensor is made for the measuring of water ORP value.
First of all, the ORP value can reflect the oxidation-reduction ability in water. The stronger the oxidation-reduction ability in water, the higher the oxygen content in the water and the stronger the metabolism ability of the water body, which is conducive to maintaining the ecological balance of the water body.?
Secondly, the ORP value can be used to monitor the pollutants in water, because many harmful substances (such as heavy metals, chlorine, etc.) have strong redox ability, and they will affect the ORP value in water. Therefore, by monitoring the ORP value in water, pollutants in water can be found in time, and corresponding measures can be taken for treatment.
Finally, monitoring the ORP value in water can also be used to control the water treatment process. For example, in the disinfection process, the PH ORP analyzer can display the ORP value and reflect the concentration and disinfection effect of the disinfectant, so as to control the dosage of disinfectant and ensure the safety of water.

Features

ORP composite electrode

the body of the analog ORP Sensor adopts high-performance PPS plastic shell encapsulation

The reference of the ORP sensor adopts a large-area annular porous PTFE diaphragm

The reference electrode is Ag/AgCl, filled with saturated KCL+excess KCL crystals;

There are 1 inch NPT installation threads of the analog orp sensor, easy to install;

Low noise lead, length can be customized.

Specification

Product Name	ORP sensor
Measuring Range	-1500mV~1500mV
Working Pressure	0~6Bar
Operating Temp.	0~100℃
Material	PPS+PTFE+platinum sheet
Zero(E0) ORP	±20mV
slope(SLOP)%	＞95%
flow rate	0.5m/s≥flow rate≥0.001m/s
Reference System	Ag/AgCl, double salt bridge, KCL crystal

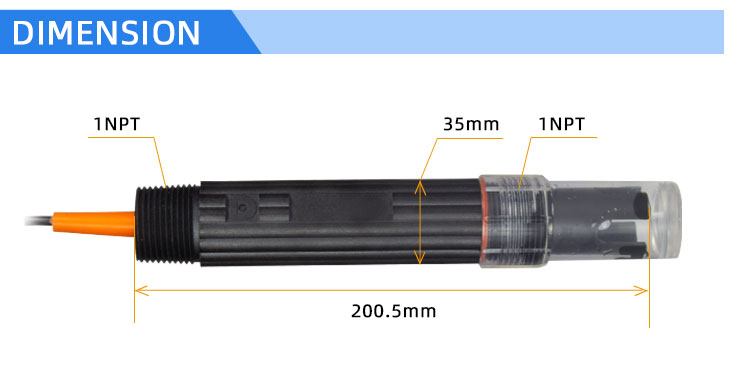

Dimensions	Diameter 35mm/Total length 200 mm
Installation Dimensions	A British 1 NPT of the head and the tail for each install thread；Insert depth 100(including cleaning plug 115)
Signal Lead	default 5 meters, Support orders within 60 meters

online orp sensor

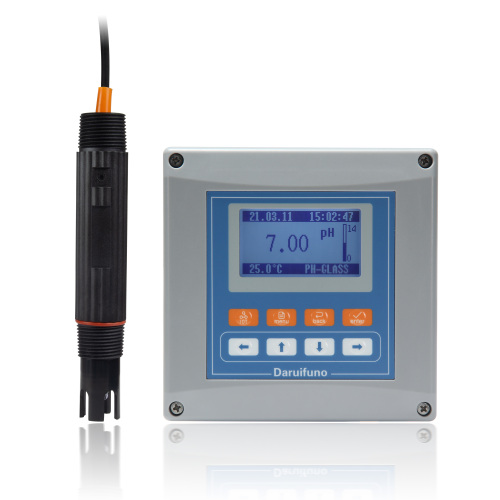

You can use ASR400 ORP sensor with our APX series pH ORP Controller to realize the real-time monitoring of water ORP and pH values. More details, please contact us!
