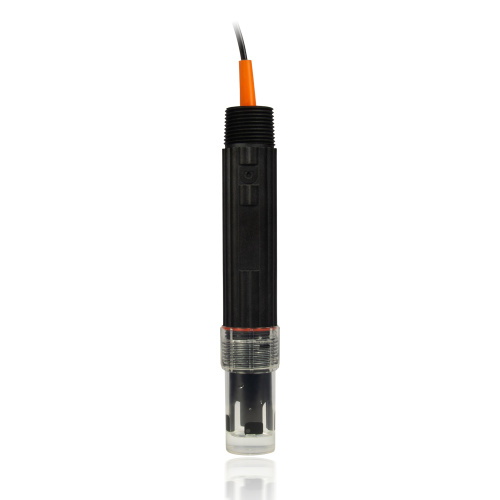

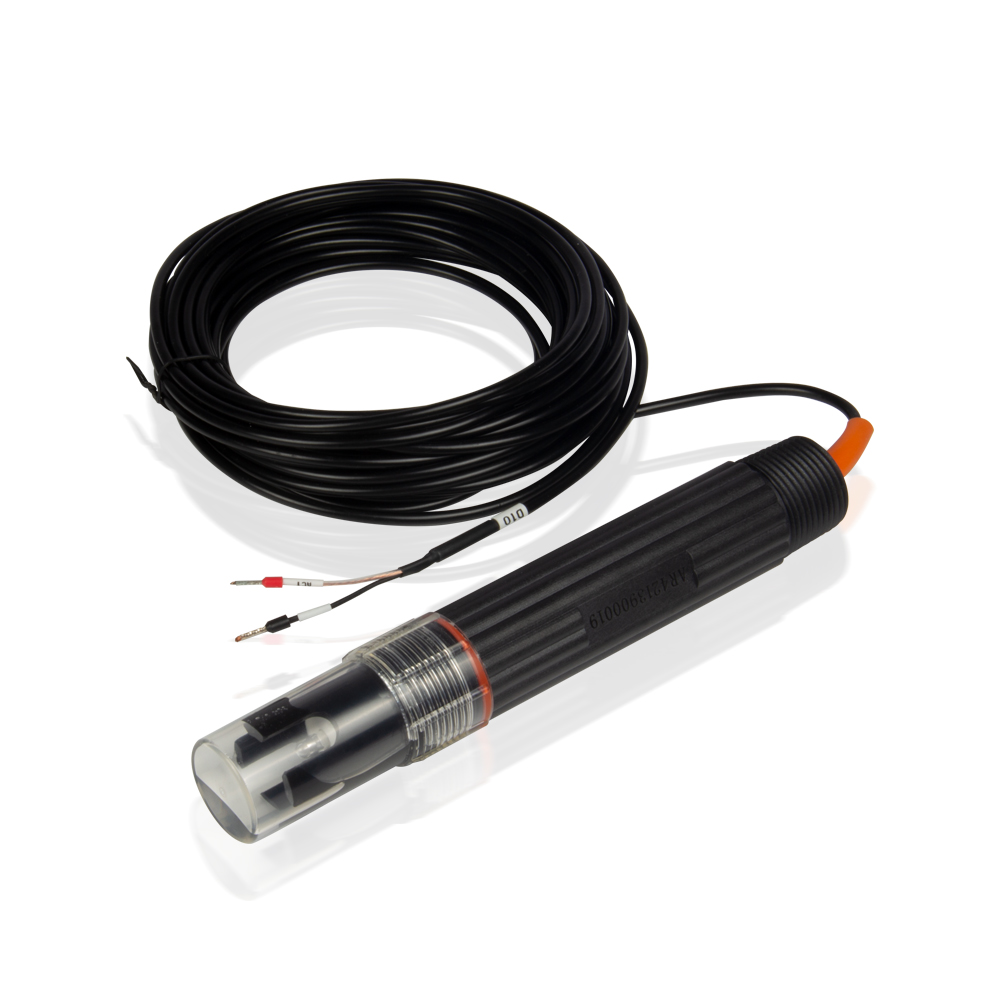

Analog 2000mV Monitor Redox ORP Water Tester Probe



Analog 2000mV Monitor Redox ORP Water Tester Probe

Get Latest Price

Measuring range	-2000~2000mV
option	5 meters 10 meters 15 meters
Contact Now

Model No.: ASR401

Brand: daruifuno

Certification: CE,ISO9001

Signal Type: Analog

Measuring Range: ±2000mV

Working Temperature: 0~100℃

Reference Electrode: Ag/AgCl

Shaft Material: PPS

Support Customization: Oem

Place Of Origin: China

Working Pressure: 0~6Bar

Dimension: Diameter 35mm/Length 200mm

Description

Product Description

The water plant monitors the ORP value by measuring the tap water through the ORP tester to understand the changes in the oxidation-reduction potential in the water. The ORP value is a measure of the ability of redox substances in water, which can reflect the content of harmful substances in water and the sanitation of water. Therefore, it is very important for the waterworks to monitor the ORP value, which can help the waterworks to detect water quality problems in time and take timely measures to ensure water quality safety. In addition, the ORP value can also be used to judge the concentration of disinfectants in water, such as chloride and ozone, so as to control the dosage of disinfectants and ensure the stability and safety of water quality. In short, monitoring the ORP value of waterworks is a very important task, which can effectively guarantee the safety and health of people's drinking water.

Features

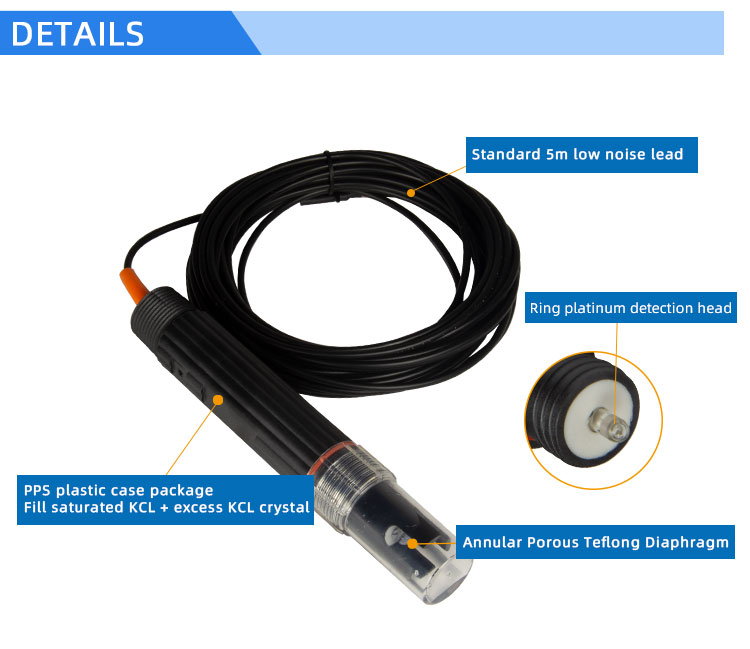

ORP composite electrode, the body adopts high-performance PPS plastic shell encapsulation, the structure is firm;

Ring-shaped platinum detection head, the orp tester?has a wide response range and is suitable for sewage environment;

The reference of the Analog Orp Sensor adopts a large-area annular porous PTFE diaphragm, which has the characteristics of fast penetration speed, fast response, not easy to block, and easy to clean;

The reference electrode is Ag/AgCl, filled with saturated KCL+excess KCL crystals;

There are installation threads at the beginning and the end, easy to install;

The ORP tester sensor is equipped with a protective cover with its own cleaning interface, the user can quickly access the automatic cleaning system;

?Low noise lead, length can be customized.

Specification

Product Name	analog ORP Sensor
Measuring Range	2000mV~+2000mV
Working Pressure	0~6Bar
Operating Temp.	0~100℃
Material	PPS+PTFE+platinum ring
Zero(E0) ORP	±20mV
slope(SLOP)%	＞95%
flow rate	0.5m/s≥flow rate≥0.001m/s
Reference System	Ag/AgCl, double salt bridge, KCL crystal
Dimensions	Diameter 35mm/Total length 200 mm
Installation Dimensions	A British 1 NPT of the head and the tail for each install thread
Signal Lead	default 5 meters, Support orders within 60 meters

orp sensor

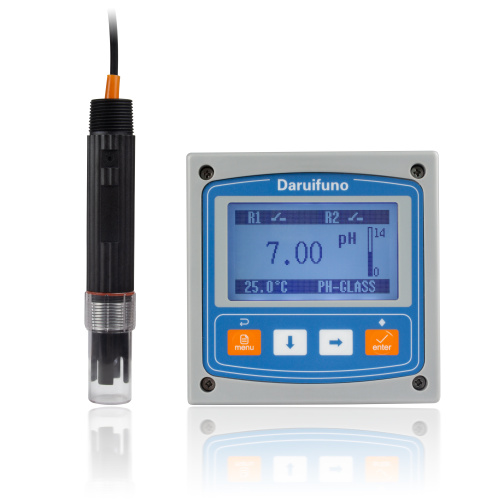

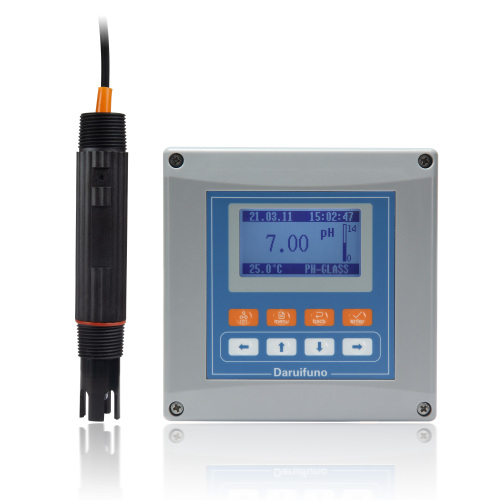

Equipment used with ORP sensors includes pH ORP Controller, thermometers, liquid level gauges, etc. for comprehensive monitoring and control. In conclusion, ORP sensors play an important role in industrial production and environmental protection.
