The pH electrode installed in the bioreactor needs to be able to withstand the high temperature disinfection and sterilization process. And it can provide reliable and stable measurement data under high temperature environment. Daruifuno's ASP120E series pH electrodes are specially designed for some special industrial environments, including special occasions such as fermentation, high temperature, chemical process and pure water. In some industries such as the fermentation industry, fermenters are required. Common installation methods for pH electrodes are: submerged, flow-through, and pipeline. Fermentation tanks are usually installed on the side wall. Our company specially designed this set of side wall mounting accessories for fermenters, suitable for glass electrodes with PG13.5 thread and pH electrodes with 1 inch NPT thread.?

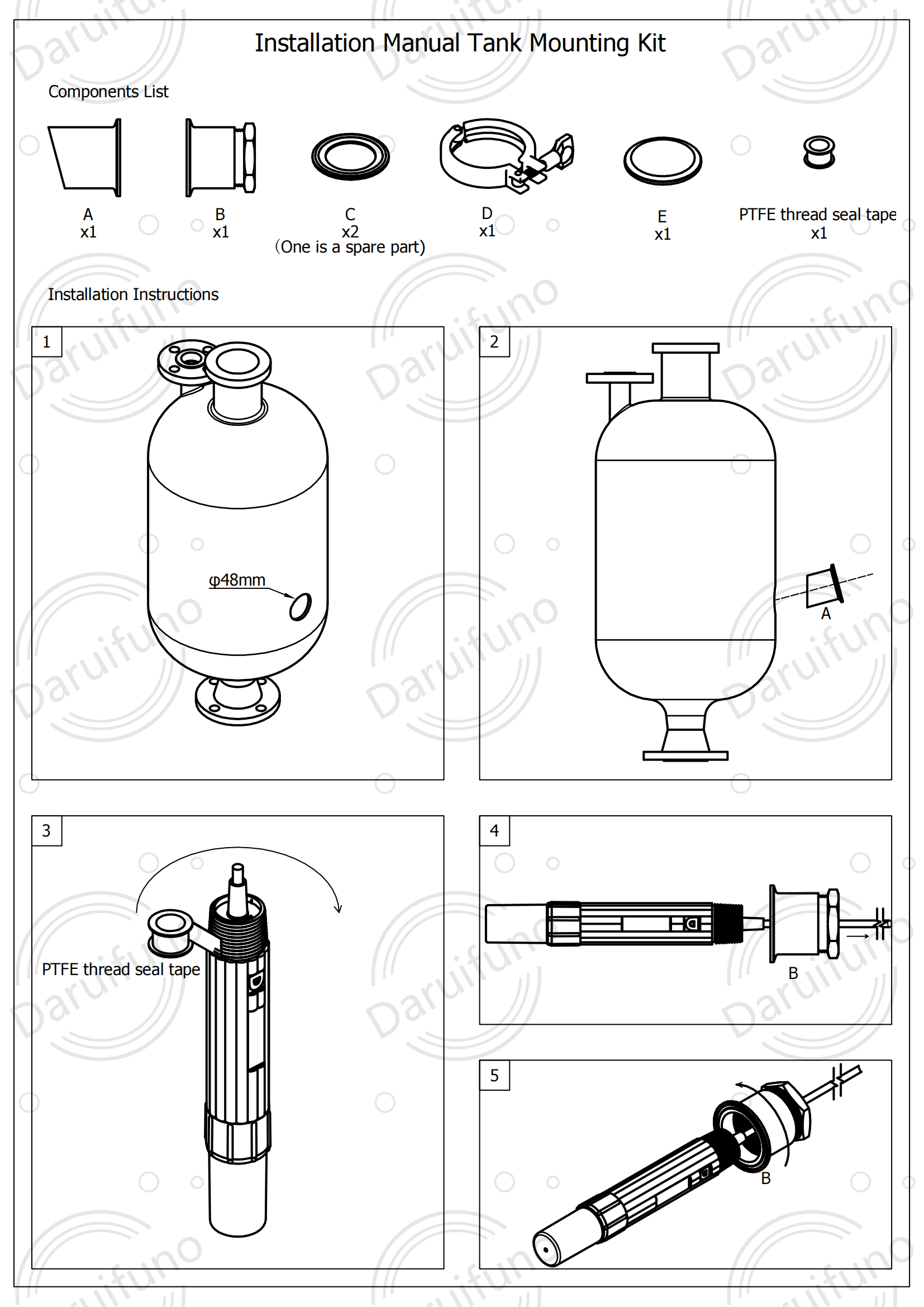

We provide the accessories for side wall mounting, if you want the Installation drawings, please contact us!
When using a PH Sensor in a fermenter, especially a Glass PH Electrode, it can be covered with a stainless steel protective sleeve or a PTFE sheath. The pH sensor of ASP125E is specially customized for high temperature fermentation industry.
Specification
| Product Name | PH sensor electrode |
| Product Model | ASP125E |
| Measuring Range | 0~14pH |
| Indicator Electrode | Low impedance cylindrical glass membrane |
| Working Pressure | Medium and low temp environment: max. 0~6bar |
| High temp environment: 0~3bar | |
| Operating Temperature | Medium and low temp environment: 0~100℃, continuous work |
| High temp environment: 100~135℃, continuous work for less than 60 mins | |
| Sample Flow Rate | 0.5 m/s ≥ flow velocity ≥ 0.001 m/s |
| Materials in contact with liquid | Glass+ceramic sand core |
| Reference System | Ag/AgCl reference electrode, double salt bridge, KCl gel |
| Shaft Material | glass |
| Temperature Unit | PT1000 |
| Dimensions | Diameter 12mm / Length120mm (customized) |
| Installation Dimensions | PG13.5 mounting thread or Anti-twist cap |
| Signal Lead | Support orders within 60 meters |
| Tail Lead | Integral or split |
In addition, to prolong the life of the pH electrode requires regular cleaning and maintenance of the electrode. For the accuracy and stability of the data, it is also necessary to calibrate the electrode regularly.
Delfino focuses on the R&D, production and sales of water quality analysis instruments. Its main products include online pH ORP analyzer, conductivity analyzer, turbidity analyzer, dissolved oxygen analyzer, COD analyzer, ammonia analyzer, chlorine analyzer, etc. If you need water treatment related products, please contact us.
?
