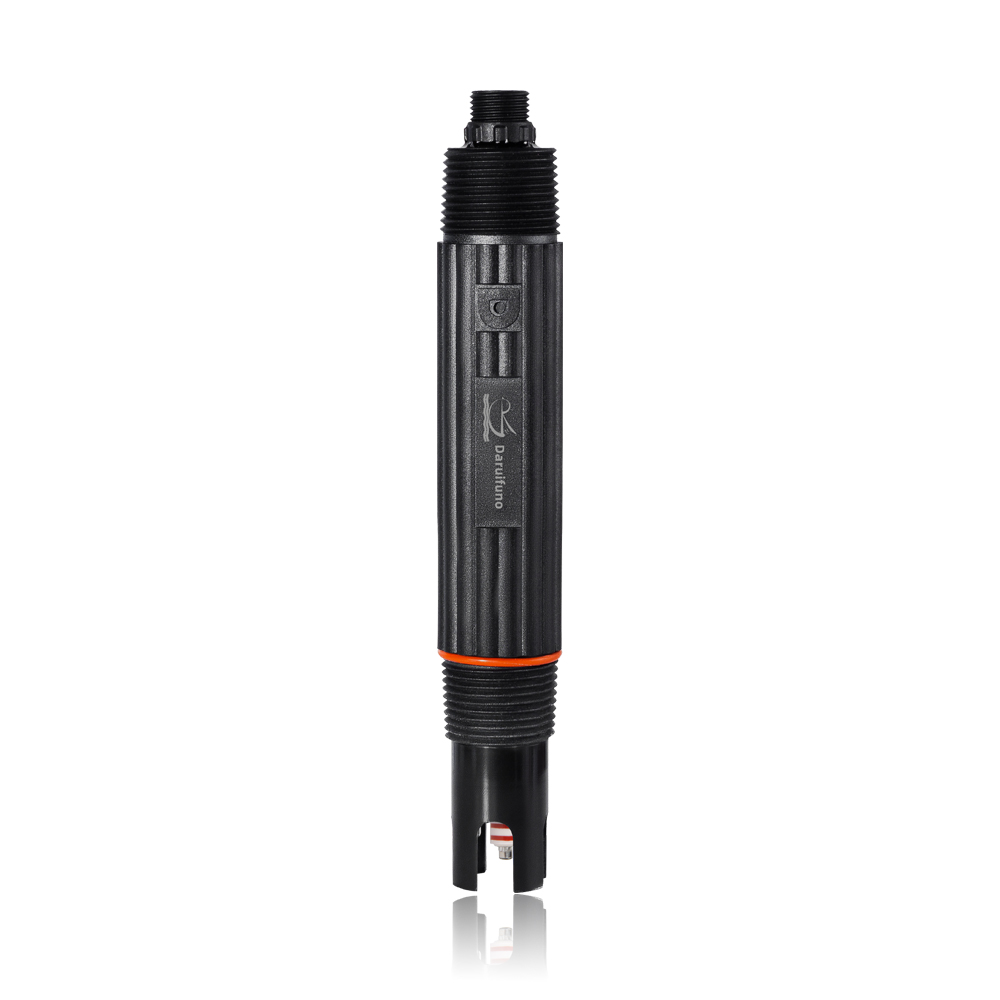

Modbus Digital ORP Probe Sensor RS485 for Sewage



Modbus Digital ORP Probe Sensor RS485 for Sewage

Get Latest Price

Measuring range	-2000~2000mV
option	PPS ABS
Contact Now

Model No.: DRH790

Brand: daruifuno

Certification: ISO9001

Warranty: 1 Year

Working Pressure: 0~4Bar

Measuring Range: ±2000mV

Working Temperature: 0~50℃

Shaft Material: PPS

Dimension: Diameter 35mm/Length 220mm

Support Customization: Oem

Place Of Origin: China

Signal Output: digital RS485

Protection Grade: IP68

Description

Product Description

The method of monitoring ORP values in wastewater plants is to measure them using ORP Probe. ORP value refers to the redox potential and is an indicator of the redox properties in the water body. In the sewage treatment process, the ORP value can be used to monitor the redox reaction in the sewage, especially the process of the oxidation reaction, which can be used as an important indicator to judge the effectiveness and effect of the sewage treatment process.
In the process of sewage treatment, the change of ORP value can reflect the process of decomposition and oxidation reaction of organic matter in sewage, and with the progress of the treatment process, the ORP value will gradually increase, indicating that the decomposition and oxidation reaction of organic matter is gradually strengthened, and the treatment effect will gradually increase. Therefore, monitoring the ORP value of sewage plants is of great significance to ensure the quality of sewage treatment and environmental protection. Our DRH790 model Digital ORP Sensor has RS485 interface, it can be used for various applications of monitoring the ORP value.

Features?

● Combination?ORP?probe, the digital ORP Sensor is used for accurate detection for water treatment;

● Ring-shaped platinum detection head has a wide response range: -2000mV~+2000mV;

● Equipped with a protective cover with its own cleaning interface, and the user can quickly access the automatic cleaning system;

● The digital ORP sensor has a built-in temperature resistance for temperature detection;

● RS485 interface, Modbus RTU, support access to standard industrial control system;

● All-in-one package, can be used with the online transmitters, DTU, and portable instruments;

● The protection grade of the digital orp sensor is IP68, can work continuously and stably under water for a long time;

● 1" NPT mounting thread for flexible installation;

Specification?

Product Name	Digital ORP Probe
Product Model	DRH790
Measuring Range	-2000mV~+2000mV
Resolution	±1mV; 0.1℃
Accuracy	0.1% of the measuring range or ±2mV
Response Time	T90＜10s
Communication	RS485 Modbus
Calibration Method	Zero position calibration and slope calibration
Working Pressure	0~4Bar
Temp. Compensation	Built-in temperature unit, temperature detection
Operating Temp.	0~50℃
Reference System	Ag/AgCl
Shaft Material	PPS
Dimensions	Diameter 35mm / Length220mm
Protection Grade	IP68
Weight	200g
Power Supply	9~24V DC
Installation Dimensions	A British 1 NPT of the head and the tail for each install thread；
Installation Dimensions	Insert depth 100mm(including cleaning plug 115mm)
Signal Lead	Standard 5 meters, support orders within 60 meters

FAQ

1.Does ORP measurement require temperature compensation?

A: ORP measurement is not temperature controlled, so the Analog Orp Sensor does not require temperature compensation. But this digital ORP sensor has a built-in temperature unit and it can detect and compensate the temperature automatically.

2. What is the wire length of the digital ORP sensor?
A: The lead wire of this electrode is 5m by default, other lengths need to be customized, contact our customer service, the price will vary with the change of length.

3.What is the advantage of digital OPR sensor?

A: The digital ORP sensor has RS485 interface, Modbus RTU, support access to standard industrial control system and the Digital PH ORP Controller.
