MCC200 multi-parameter controller and digital sensor installation demonstration

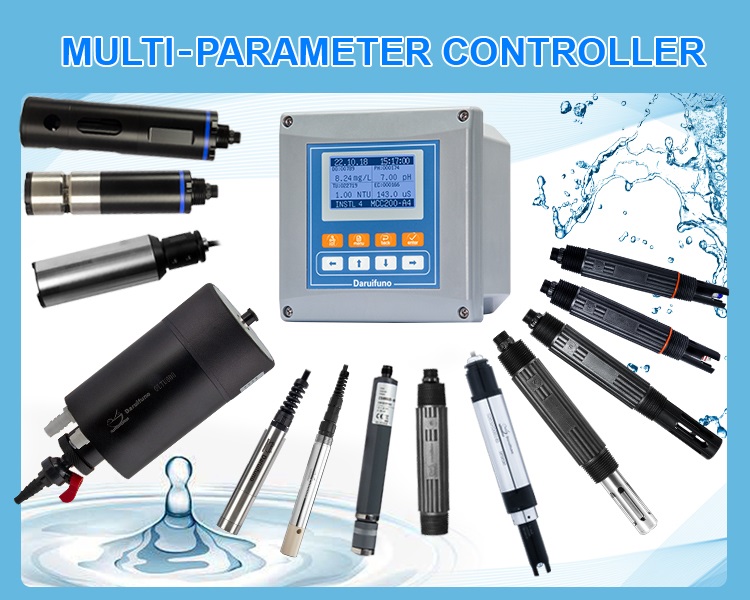

The MCC200 multi-parameter controller, meticulously developed by Daruifuno, is a high-performance online control device designed specifically for water quality parameter monitoring. This multi-channel digital universal controller has emerged as a leader in the field of water quality monitoring, thanks to its exceptional performance and broad applicability.

?

Equipment Introduction

The MCC200 multi-parameter controller supports the simultaneous connection of 4 or 8 digital sensors (this demonstration features a connection of 4 sensors). It boasts powerful data processing capabilities and can display real-time detection and calculated values for all connected sensors. Its high-precision measurement and stable performance make water quality monitoring more accurate and reliable.

?

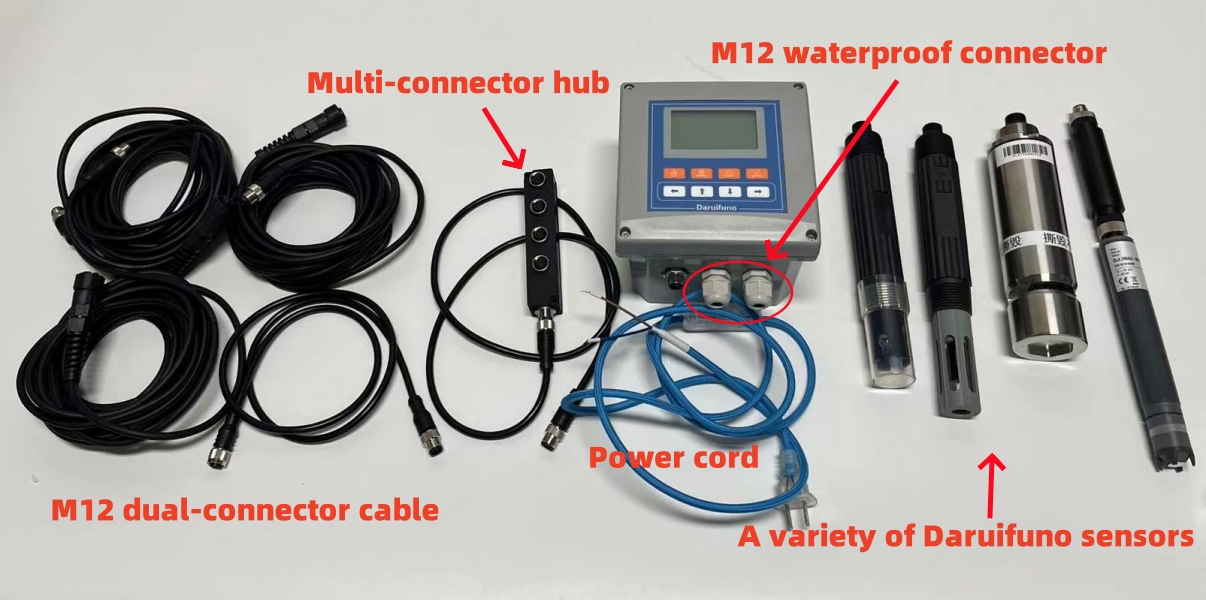

Required Accessories

To complete the connection between the MCC200 multi-parameter controller and multiple sensors, you will need the following essential accessories:

• M12 waterproof connector: Ensures effective waterproofing of the connection between the controller and the hub bus connector.
• Power cord: Provides stable power input to ensure the controller operates normally.
• Multi-connector hub: Customize the number of connectors based on your needs to organize and manage multiple sensors, enhancing connection neatness and reliability.
• M12 dual-connector cable: Connects the controller and the multi-connector hub to ensure stable data transmission.
• Various Daruifuno sensors: Including but not limited to pH sensors, dissolved oxygen sensors, and turbidity sensors, for monitoring various water quality parameters.

?

Installation Steps

1. Disassemble the controller panel: Use appropriate tools to disassemble the MCC200 multi-parameter controller panel to install internal accessories.
2. Install the M12 waterproof connector: Attach the M12 waterproof connector to the controller's reserved interface. Note that the data cable inside the MCC200 is pre-connected at the factory, so you only need to secure the waterproof connector.
3. Connect the power cord: Plug the power cord into the controller's power interface and ensure it's securely connected. Then, power on and check if the controller is functioning correctly.
4. Dock the multi-connector hub and M12 dual-connector cable: Connect them based on your needs. Ensure each connector is firmly attached to avoid data transmission interruptions or signal interference.
5. Dock various digital sensors: Connect each digital sensor's M12 connector to the multi-connector hub's corresponding interface. Pay attention to the sensor's type, range, and accuracy to ensure compatibility with the controller.

?

Precautions

• Sensor type: The MCC200 multi-parameter controller only supports digital sensors. When purchasing, confirm if it's a digital type.
• Connection order: Connect sensors in the order of the controller's interfaces for easier data management and analysis.
• Waterproof performance: Ensure all interfaces and cables have good waterproofing to prevent moisture damage.
• Debugging and calibration: After installation, debug and calibrate the controller and sensors to ensure data accuracy and reliability.

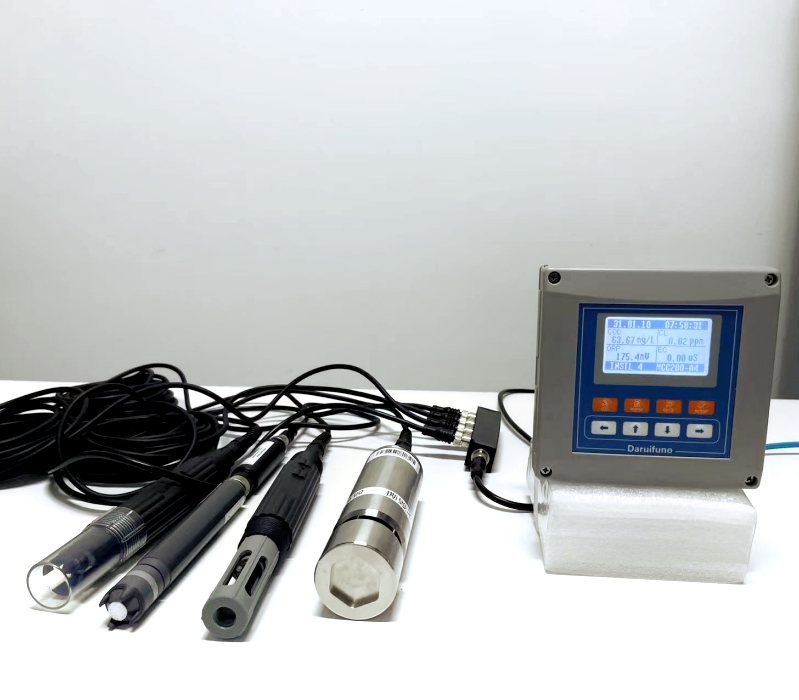

By following the above steps, you can easily connect and install the MCC200 multi-parameter controller and 4 sensors. During subsequent use, adhere to the equipment's operating manual and maintenance guide to ensure long-term stable operation and accurate data collection.
