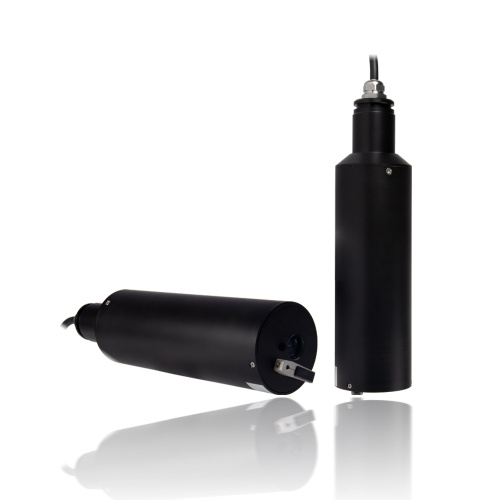

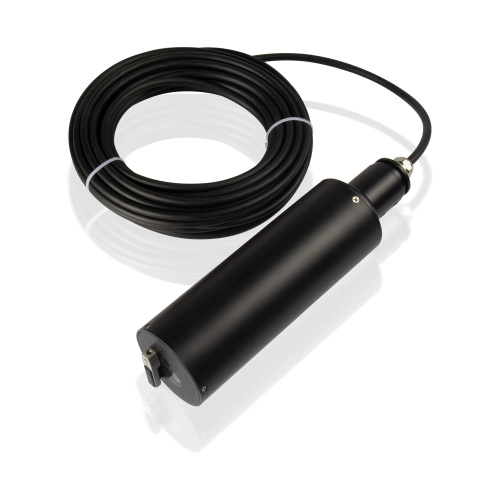

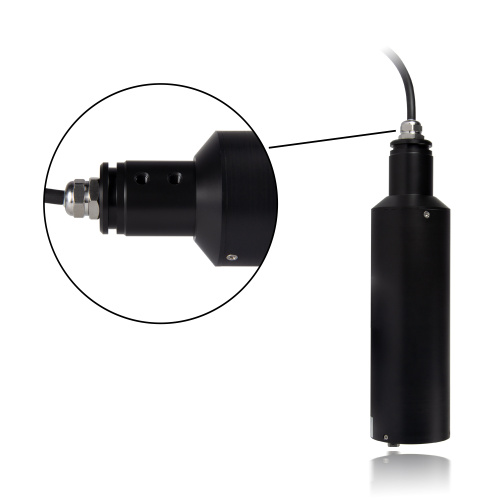

Digital Sludge Concentration Sensor for Sludge Treatment

Digital Sludge Concentration Sensor for Sludge Treatment

Get Latest Price

Measuring range	0.01~20g/L 0.01~45g/L 0.01~120g/L
option	PVC+POM stainless steel+POM
Contact Now

Model No.: MLSS

Brand: daruifuno

Certification: ISO9001

Communication: MODBUS RTU

Working Temperature: 0~45℃

Temperature Compensation: Automatic

Protection Grade: Ip68

Dimension: Diameter 52mm/Length 195mm

Support Customization: Oem

Place Of Origin: China

Product Name: sludge concentration sensor

Description

Product Description

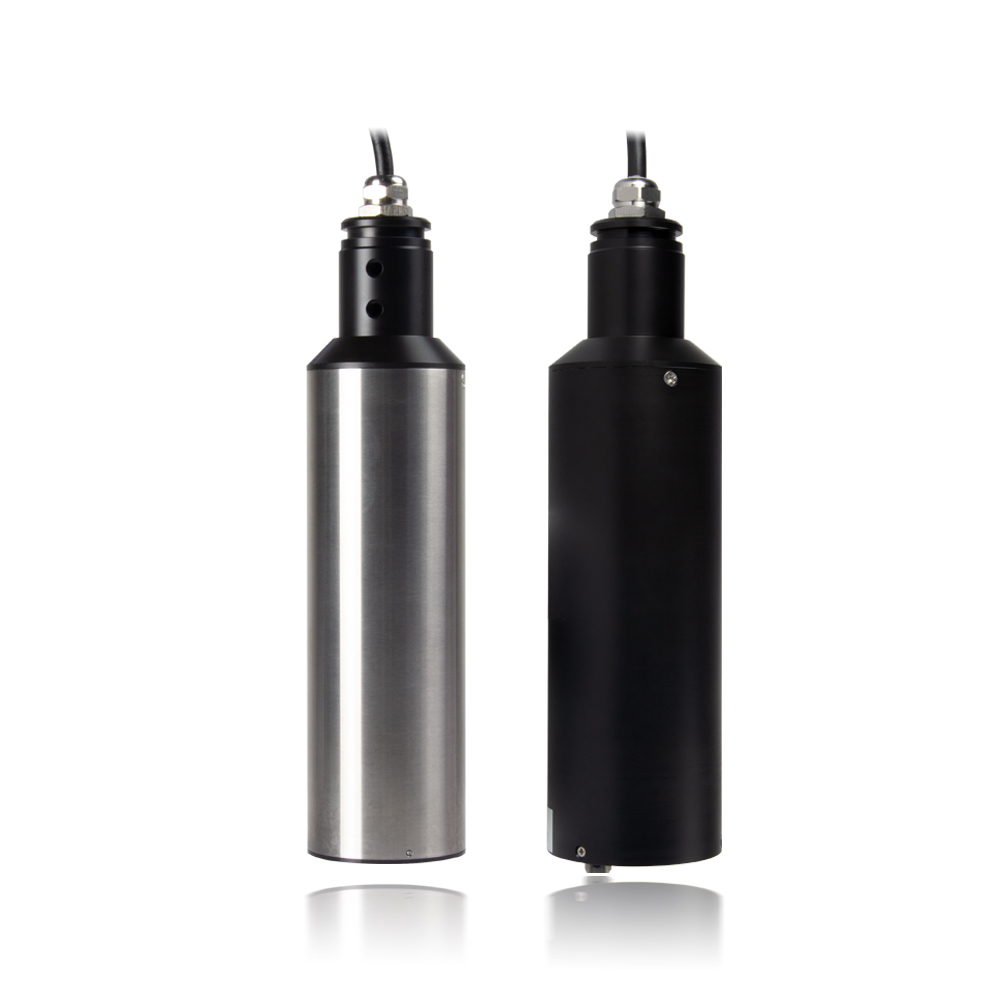

The infrared scattering method uses the scattering characteristics of solid particles in the sludge to infrared light to measure the concentration. When infrared light passes through a sludge sample, the solid particles scatter the light, and the intensity of the scattered light is proportional to the concentration of the particles. MLSS series sludge concentration sensors provide different measurement ranges, and users can choose according to their needs. Shell material also has the choice of PVC and stainless steel. The digital sludge concentration sensor can output data through RS485 digital signal to analyze the effect of sludge treatment process. By monitoring changes in sludge concentration, treatment efficiency can be assessed and necessary adjustments and controls can be made. The online sludge concentration sensor can monitor the sludge concentration in real time, and measure the sludge concentration of water quality by infrared optical method. The suspend solids sensor can be connect to the online suspend solids controller to realize more functions.

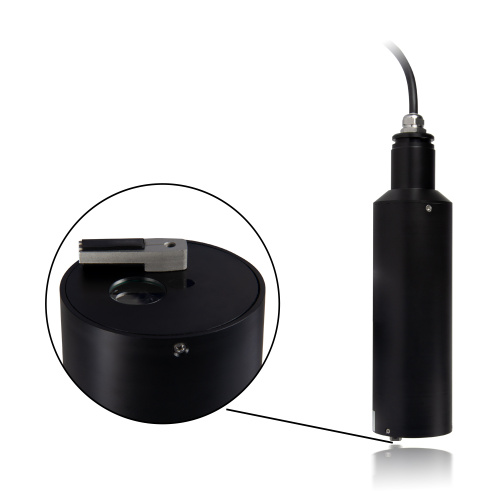

Sludge concentration sensors require regular maintenance and cleaning to keep the device functioning properly. Regularly check the status of the sensor, clean the surface of the sensor, and ensure that the sensor is not covered by sludge or other substances, so as not to affect the measurement accuracy. Our sensor has its own cleaning brush, which can realize automatic cleaning under water.

Features

Infrared double-beam scattered light measurement is suitable for the monitoring of high-concentration sludge wastewater
Multi-range, fast response RS485?

digital Suspended Solids Sensor also called?sludge concentration sensor
With self-cleaning system to realize automatic cleaning under water?

Various shell materials are optional

Specification

Product Name	?sludge concentration(suspend solids sensor)
Product Model	MLSS301	MLSS311	MLSS321
Measuring Range	0.01~20g/L	0.01~45g/L	0.01~120g/L
Measuring Principle	880nm infrared light source
Accuracy	Less than 5% of the measured value
Resolution	0.01g/L
Response Time	T90＜60s
Communication	Modbus RTU, RS485 interface
Calibration Method	Multipoint Calibration, Factor Calibration
Flow Rate	not depend on
Working Pressure	≤4 Bar
Operating Temperature	0~50℃
Storage Temperature	-10℃~60℃
Shaft Material	PVC+POM/stainless steel+POM
Dimensions	Diameter 65mm/length 270mm
Protection Grade	IP68
Power Supply	12V DC
Consumption	1.5W
Weight	800g
