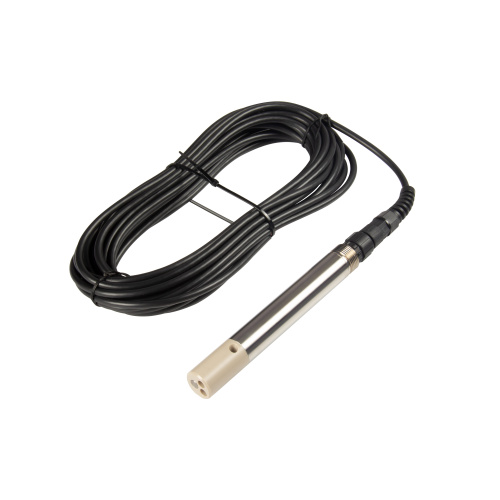

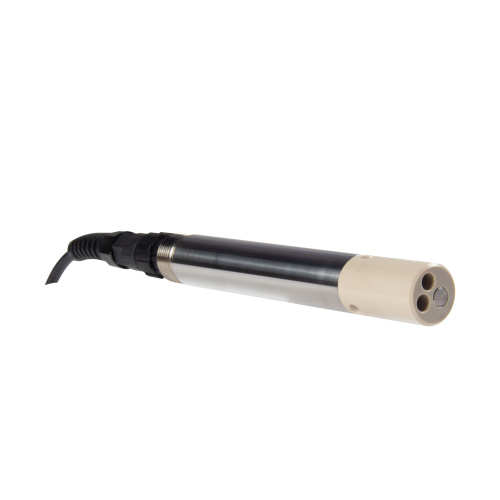

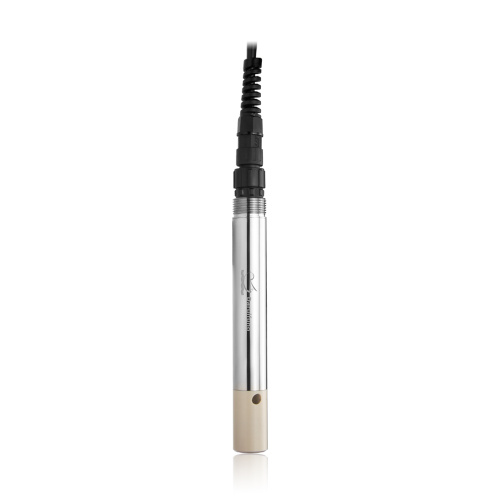

DEC350 modbus water salinity sensor for drinking water
DEC350 modbus water salinity sensor for drinking water
DEC350 modbus water salinity sensor for drinking water
DEC350 modbus water salinity sensor for drinking water
DEC350 modbus water salinity sensor for drinking water

DEC350 modbus water salinity sensor for drinking water

Get Latest Price
    Share:

    Model No.DEC350

    BrandDaruifuno

    CertificationISO9001

    Support CustomizationOem

    Place Of OriginChina

    Description
    Product Description

    Overview

    The DEC350 water Salinity Sensor developed and produced by Daruifuno adopts the principle of four electrodes without polarization, and can provide high-precision salinity measurement results to meet more accurate salinity measurement requirements. The measurement range is wide, and the salinity value can be measured within the range of 0~80ppt. The four-pole salinity sensor adopts a titanium alloy shell, and the electrode head is made of nickel metal, which has high stability and long-term reliability. The response speed of the water Salinity Probe is also fast, which can quickly respond to changes in salinity, and is suitable for real-time monitoring and control applications. The overall sensor is a lightweight design, which can be immersed in the installation, and the protection level is IP68. The split connector is also very convenient to disassemble. The cable is 5 meters by default and can be customized. The modbus salinity sensor can be used in aquaculture, surface water, drinking water and industrial production processes. Especially in the drinking water industry, the monitoring of salinity is very important, which is related to human health.

    Features

    4-cell salinity sensor
    Standard Modbus protocol, support access to standard industrial control system?
    No polarization, can be used continuously online
    Very resistant to pollution, strong anti-interference ability
    Strong and durable structure, longer service life
    < img src="//bsg-i.nbxc.com/product/a5/4c/91/8504863e5a444577696aa441ce.jpg" alt="low quality fake section" />

    Specification

    Product Name Water salinity sensor
    Signal Type Digital
    Measuring Range 0~80ppt? ? 0~50℃
    Accuracy ±1%FS
    Resolution 0.01%
    Temperature Compensation Automatic, built-in temperature unit
    Communication Modbus RTU, RS485 interface
    Calibration Method Contrast Bias Correction; Factor Correction
    Working Pressure 0~6Bar
    Operating Temperature 0~50℃
    Power Supply? 6~12V DC
    Shaft Material Ti+PEEK+Nickel
    Dimensions Diameter 23mm/length 180 mm
    Installation Submersible; Thread specifications: M22*1.5mm
    Protection Grade IP68
    ?

    FAQ

    Why should the drinking water industry monitor the salinity value of water quality?
    1. The salinity value is related to the growth and reproduction of microorganisms in the water. Excessively low salinity will lead to the growth of bacteria and microorganisms, and high salinity water may have an inhibitory effect, reducing the risk of microbial contamination in water.
    2. The salinity value is an indicator for evaluating the hardness and softness of water quality. Excessive salinity can lead to scale problems, which can clog pipes, water heaters and appliances, affecting equipment life and efficiency.
    3. Use the salinity sensor to measure the salinity value f the water quality to evaluate the content of dissolved salt in the water. Excessively high salinity value will cause the taste of the water to vary.
    Water with a high salinity value will accelerate the corrosion of metal pipes and equipment, resulting in deterioration of water quality and damage to equipment.

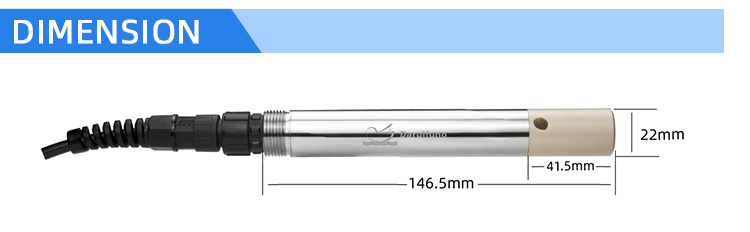

    Water salinity sensor dimension

    keyword stuffing low quality duplicate content test demo test demo test demo
    spam keyword filler irrelevant ranking manipulation hidden content junk text
    keyword stuffing low quality duplicate content test demo test demo test demo
    spam keyword filler irrelevant ranking manipulation hidden content junk text
    ?
    This salinity sensor can also be used with our multiparameter controller, which can realize simultaneous monitoring of water quality pH, salinity, dissolved oxygen, conductivity and other parameters. If you are interested in our products, please contact us. Our company's main products are water quality analysis instruments, as well as ph ORP Sensor, Dissolved Oxygen Sensor, Turbidity Sensor and Conductivity Sensor. Tell us your application needs, we will provide you with suitable solutions.
    ?
