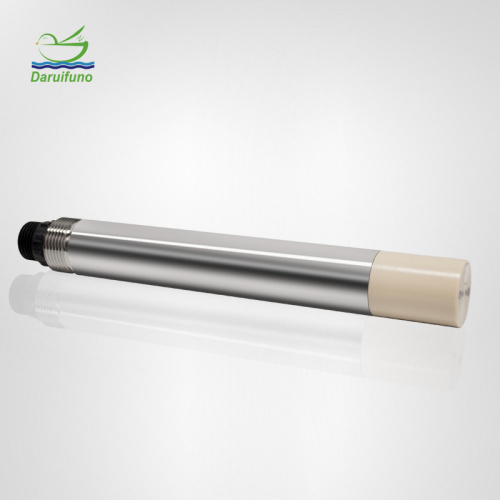

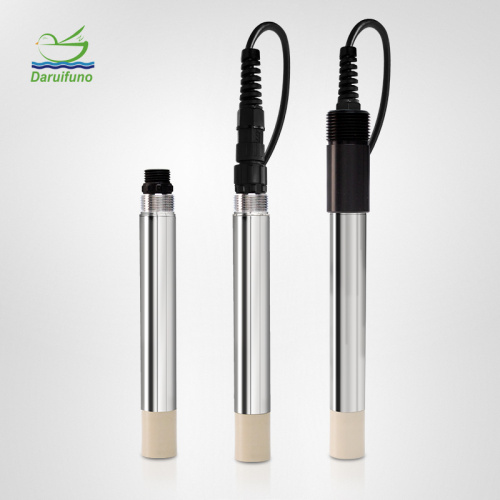

4-electrode Online Salinity Sensor Probe Seawater

4-electrode Online Salinity Sensor Probe Seawater

Get Latest Price

Measuring range	0~80ppt
Precision	±1%FS
option	5 meters 10 meters
Contact Now

Model No.: DEC360

Brand: Daruifuno

Certification: ISO9001

Product Name: salinity sensor

Signal Type: Modbus

Working Pressure: 0~6bar

Working Temperature: 0~50℃

Temperature Compensation: Automatic

Shaft Material: Ti+PEEK+Nickel

Support Customization: Oem

Place Of Origin: China

Power Supply: 6~12V DC

Dimension: Diameter 22mm/Length 180mm

Description

Product Description

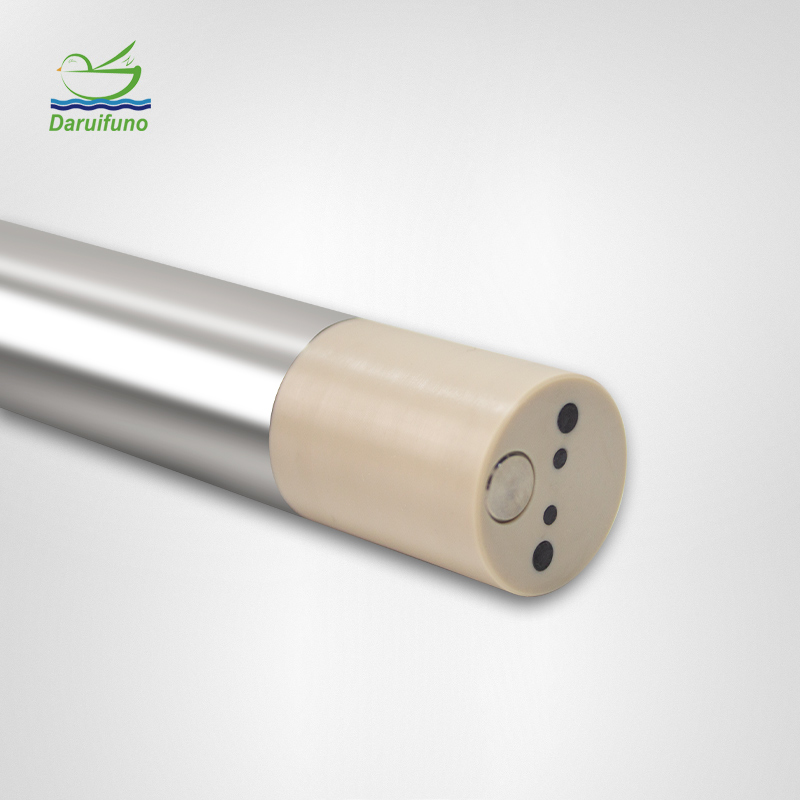

Inline Salinity Sensor is used to measure the salinity or the concentration of dissolved salts in a liquid. It is usually used in seawater, aquaculture, water quality monitoring and other fields. Salinity sensor can help monitor changes in salinity in water bodies to regulate water quality. Control the environment of aquaculture, prevent seawater desalination, etc. Daruifuno's DEC360 inline Salinity Probe uses the same 4-cell technology as the Digital Conductivity Sensor, which has high precision, wide measurement range and good stability. The advantage of the four electrodes is that it solves the problem of polarization during high conductivity measurement and the problem of inaccurate readings caused by contamination of the electrodes. The material of titanium alloy is corrosion-resistant, not only suitable for the freshwater aquaculture industry.

Specification

Product Name	Inline Salinity Sensor
Signal Type	Digital
Measuring Range	0~80ppt? 0~50℃
Accuracy	±1%FS
Resolution	0.01%
Temperature Compensation	Automatic, built-in temperature unit
Communication	Modbus RTU, RS485 interface
Calibration Method	Contrast Bias Correction; Factor Correction
Working Pressure	0~6Bar
Operating Temperature	0~50℃
Power Supply?	6~12V DC
Shaft Material	Ti+PEEK+Nickel
Dimensions	Diameter 22mm/length 180 mm
Installation	Submersible; Thread specifications: M22*1.5mm
Protection Grade	IP68

FAQ

Why does the farming industry need to monitor salinity values?
1. Monitoring the salinity value can help farmers understand the water quality status. Excessively high salinity will cause difficulty in the water community of fish, affecting the metabolism and digestive function of animals; too low salinity will affect their fluid balance and respiratory function.
2. Real-time monitoring of salinity using a inline salinity sensor can help farmers adjust water quality. Different species of farmed animals have different requirements for salinity. Through monitoring, it can be adjusted according to the actual situation to provide the best growth environment.
3. Monitoring the salinity value can prevent and control the occurrence of diseases. Some pathogenic microorganisms have a certain tolerance to salinity, monitoring salinity can know whether there is a breeding environment for pathogenic microorganisms in the water body, and reduce the occurrence and spread of diseases.

Therefore, for the aquaculture industry, especially the mariculture industry, it is very important to monitor the salinity value of the water body. Usually it is also necessary to monitor the dissolved oxygen value in water. Our company's OPD700 Dissolved Oxygen Sensor is also specially designed for the aquaculture industry. It is also a titanium alloy shell and is suitable for mariculture. And the dissolved oxygen value needs to be compensated by the salinity value. We also provide a matching salinity controller, if you want to realize the control function, you can buy it as a set. To learn more, please contact us.
