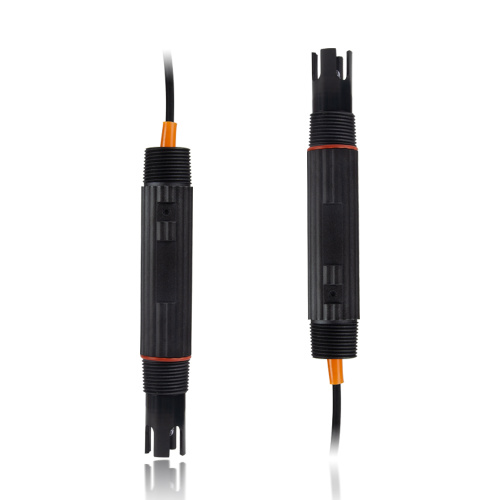

Industrial pH Sensor For Water Monitor - ASP400T

Get Latest Price

Contact Now

Model No.: ASP400T

Brand: Daruifuno

Certification: ISO9001

Description

Product Description

Description

Industrial PH Sensor, also known as industrial pH Probe, is an online water quality monitoring device mainly used for industrial pH value in water. Our ASP400T industrial pH sensor adopts PPS housing, which is resistant to high temperature and corrosion. Considering that temperature fluctuations will affect pH readings, this sensor has a built-in PT1000 temperature probe, which can be seamlessly integrated with the pH controller to detect and compensate for temperature changes while measuring pH value.

Our unique selling point is that the probe is compatible with the cleaning sheath, which can be easily connected to the user's air pump or water pump. By configuring the control relay, the underwater self-cleaning function can be realized, which is very suitable for sewage environment. This function not only saves labor, but also prevents the probe from accumulating scale underwater, thereby ensuring that the measurement accuracy is not affected.

Features

The features of the industrial pH sensor are as follows:

Low impedance hemispherical glass head, high strength, not easy to break.

The pH electrode reference adopts a large-area annular porous PTFE membrane, which has fast penetration speed, fast response, not easy to clog, and easy to clean.

The reference electrode is Ag/AgCl, filled with saturated KCL + excess KCL crystals.

There are mounting threads at the head and tail for easy installation.

Standard low-noise wire, wire length can be customized.

With reasonable use and correct maintenance, the service life of the pH probe is relatively long.

Specification

Measuring Range	0~14pH
Indicating electrode	Low impedance hemispherical glass membrane
Reference System	Ag/AgCl reference electrode,double salt bridge, KCL gel
Temperature Unit	PT1000
Electrode Material	PPS+glass+porous PTFE diaphragm
Zero(E0)pH	pH 6.86 buffer solution: 6.86±0.3 pH
slope(SLOP)%	pH 4.01 pH 6.86 buffer solution＞95%
flow rate	0.5m/s≥flow rate≥0.001m/s
Working Pressure	0~6bar
Working Temp.	0~100℃
Thread Size	1 inch NTP thread (both ends)
Dimension	Diameter:35mm Length:200mm
Cable	Default 5 meters,other length can be custom

Industrial pH sensor dimension

Application

The industrial pH sensors can be used not only for industrial water, but also for drinking water, domestic water, surface water, urban wastewater and other industry applications.

FAQ

1.What is themeasurement principle of this industrial pH sensor?

A:The pH value potentiometric method uses the potential difference of glass electrodes for pH measurement.

2.How is this glass ph probe composed?

A:The pH probe is usually composed of an indicator electrode and a reference electrode.

3.Does this pH probe have a temperature compensation function?

A:This ASP400T industrial pH sensor has a PT1000 temperature unit.

4.What is the wire length of the pH sensor?

A:The lead wire of this sensor is 5m by default,other lengths need to be customized,contact our customer service,the price will vary with the change of length.

5.Are you a manufacturer?

A:Yes. Our main products are online industrial pH sensor,online pH ORP analyzer,turbidity analyzer,conductivity analyzer and dissolved oxygen analyzer,etc.?
