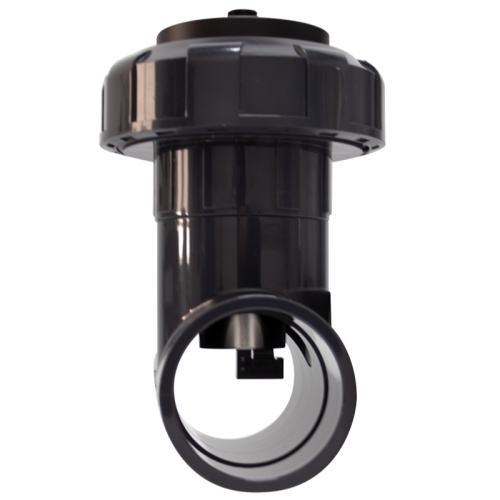

BGA351 Blue Green Algae Sensor Pipe Mounting System

Product Specifications

• Model: PIIS-BGA351-PVC-DN65
• Minimum Applicable Pipe Diameter: DN65 (Inner Diameter 75mm)
• Maximum Dimensions: 245 × 170 × 150 mm
• Main Materials: PVC + POM
• Installation Method: Socket Adhesion (Customizable for larger diameters)

The system supports flange-based sensor fixation for pipes larger than DN65.

?

Supported Sensors

This pipeline installation system is compatible with the following sensor models:

• BGA351 Blue-Green Algae Sensor
• CDOM351 Colored Dissolved Organic Matter Sensor
• OWA351 Oil in Water Sensor

It is designed to offer flexible installation and easy maintenance for diverse applications.

?

Structure and Installation Process

The installation system consists of three main components:

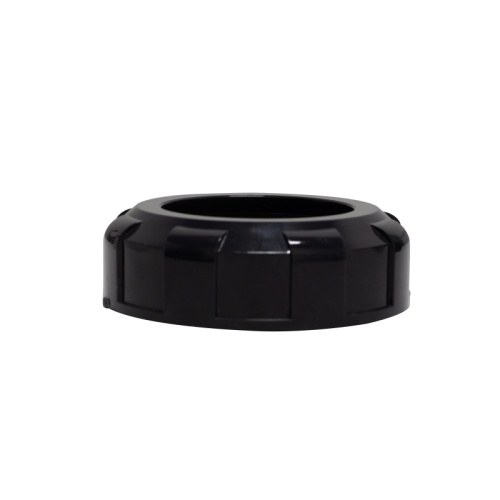

1. Pipe Cap

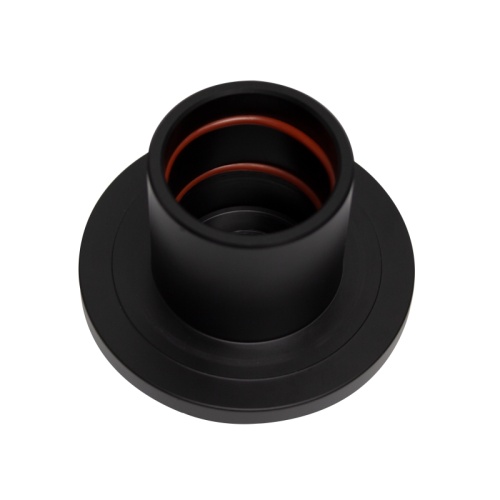

2. Sensor Fixing Plate

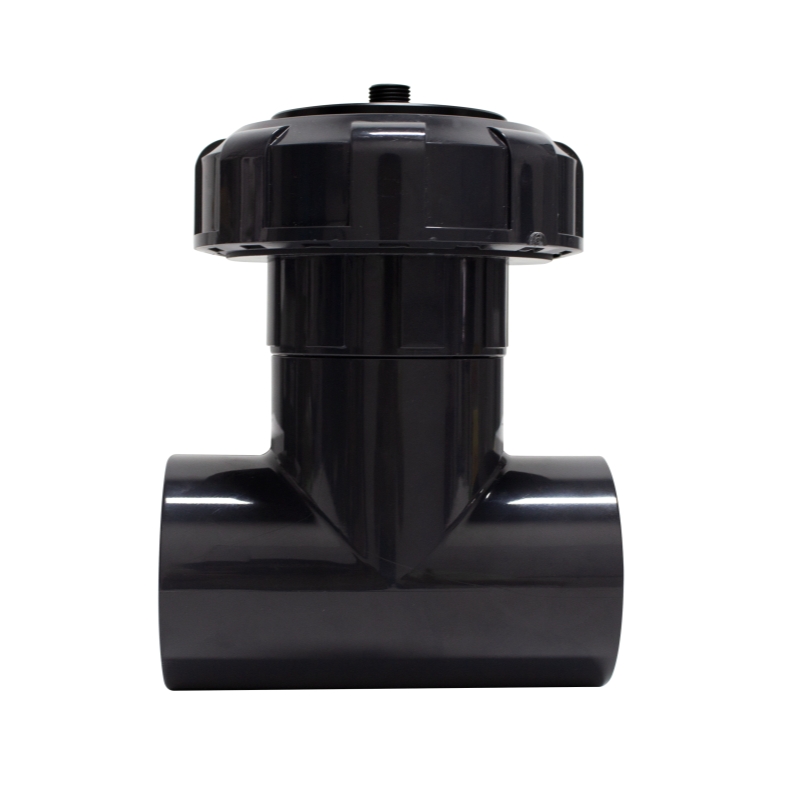

3. Pipeline Installation Body

Installation Steps

1. Insert two sealing rings into the grooves of the sensor fixing plate.
2. Apply a small amount of silicone grease evenly on the O-rings.
3. Gently and horizontally insert the sensor tail into the fixing plate, rotating it along the thread until tightened.

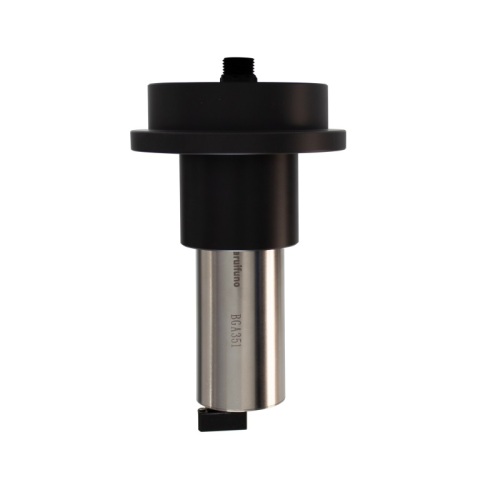

4. Place the sensor with the fixing plate into the pipeline installation body.
5. Tighten the pipe cap to complete the installation.

Maintenance: To maintain the sensor, simply unscrew the pipe cap and remove the sensor for servicing.

?

Additional Notes

• The typical lifespan of the sealing rings is 1-2 years. Replace them on schedule.
• If water leakage occurs at the top of the fixing plate, the O-rings may need replacement.
