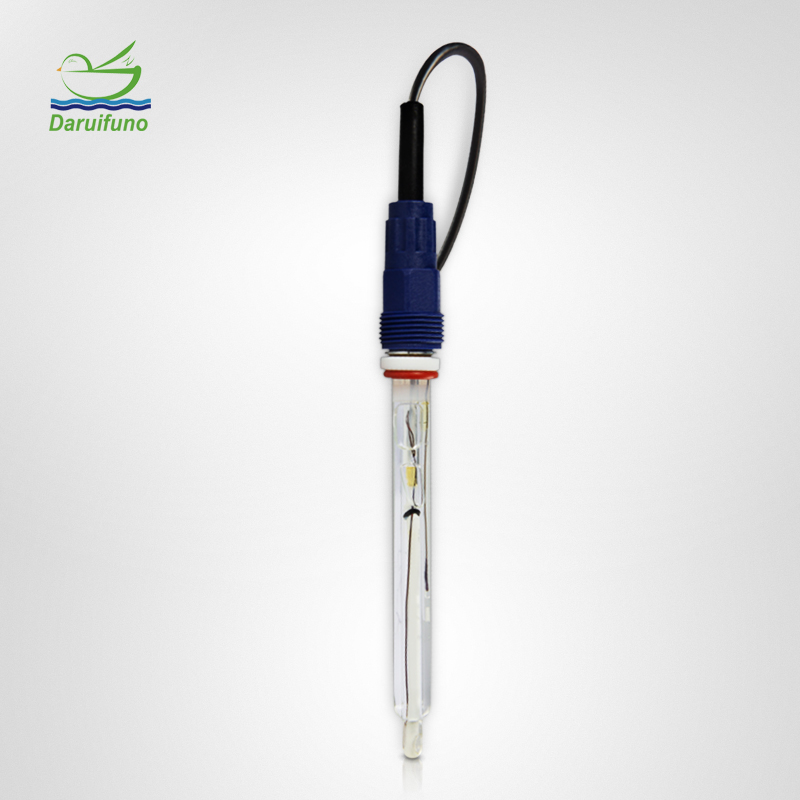

High Precision Glass pH Sensor for Strong Acid and Alkaline
High Precision Glass pH Sensor for Strong Acid and Alkaline
High Precision Glass pH Sensor for Strong Acid and Alkaline
High Precision Glass pH Sensor for Strong Acid and Alkaline
High Precision Glass pH Sensor for Strong Acid and Alkaline

High Precision Glass pH Sensor for Strong Acid and Alkaline

Get Latest Price
    Share:

    Model No.ASP120E

    Branddaruifuno

    CertificationISO9001

    Working Pressure0~6bar

    Working Temperature0~100℃

    Reference ElectrolyteKCl gel

    Reference ElectrodeAg/AgCl

    DimensionDiameter 12mm/Length120mm

    Support CustomizationOem

    Place Of OriginChina

    Product NamepH probe sensor

    Description
    Product Description

    Product Description for Advanced pH Sensors

    This premium range of pH sensors is designed to deliver unparalleled accuracy and reliability when measuring the pH levels in strong acid, strong alkaline, and acidic water environments. Whether you're working in industrial processes, laboratory research, or environmental monitoring, these sensors ensure precise readings that are crucial for maintaining optimal conditions.


    ?

    Advantage

    The electrode length can be customized, the basic model is 120mm

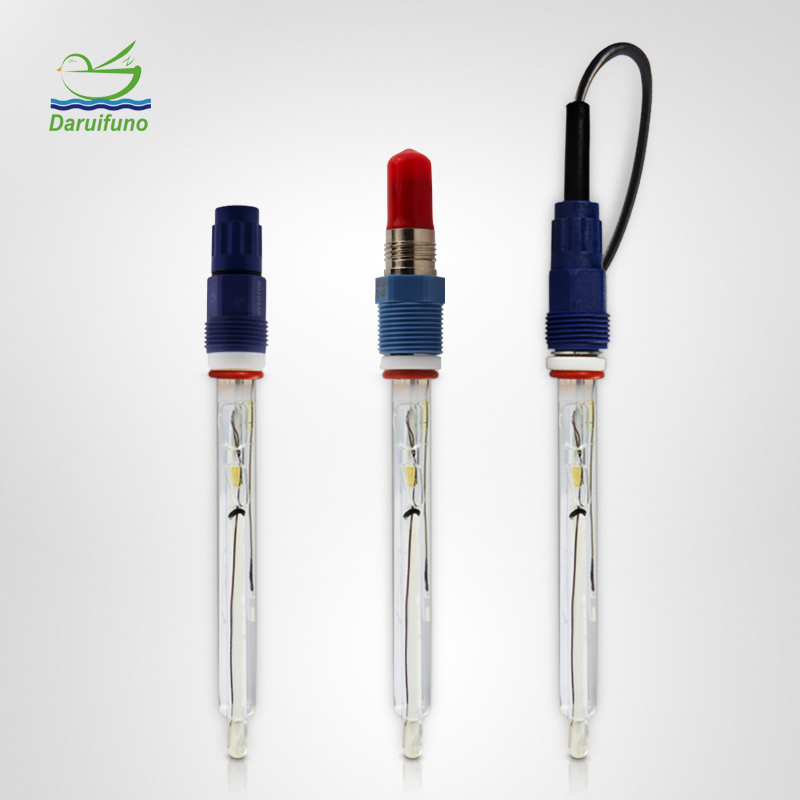

    Split and integrated styles available, FVP connectors also available
    Temperature units for pH glass electrodes are available: PT100, PT1000 and NTC10K
    Provide corrosion-resistant PTFE electrode sheaths for pH electrodes

    ?

    Specification

    Product Name pH Probe & sensor
    Product Model ASP120E
    Measuring Range 0~14pH
    Indicator Electrode Low impedance cylindrical glass membrane
    Working Pressure Medium and low temp environment: max. 0~6bar
    High temp environment: 0~3bar
    Operating Temperature Medium and low temp environment: 0~80℃, continuously working
    High temp environment: 80~100℃, continuously working <60 mins
    Materials Glass + dotted ceramic holes
    Reference System Ag/AgCl reference electrode, double salt bridge, KCl gel
    Shaft Material glass
    Temperature Unit PT100, PT1000, NTC10K customized

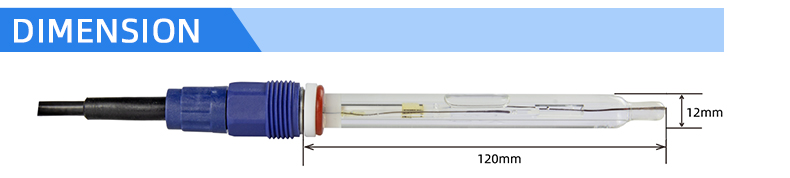

    Dimensions Diameter 12mm / Length120mm (customized)
    Installation Dimensions PG13.5
    Zero (E0) ±0.25 pH
    Slope (SLOP)% >95%
    Tail Lead Integral or split, FVP connector

    ?

    The pH sensors are crafted with precision to measure extreme pH ranges with confidence. They feature a robust design suitable for handling strong acids like sulfuric acid and hydrochloric acid, as well as strong alkalis such as sodium hydroxide and potassium hydroxide. Additionally, they provide exceptional accuracy in acidic water solutions commonly encountered in chemical processing and wastewater treatment. The sensors incorporate cutting-edge materials that resist corrosion and maintain sensitivity over time, ensuring consistent performance even under demanding circumstances.

    These pH sensors are widely used in industries ranging from pharmaceuticals to agriculture. In industrial settings, they are employed to monitor pH levels in manufacturing processes, ensuring product quality and compliance with regulatory standards. In agricultural applications, they help optimize soil acidity, contributing to healthier crop yields. Researchers also rely on these sensors for experiments requiring exact pH control, providing peace of mind with their dependable results.

    User feedback highlights the sensors' ease of use and outstanding durability. Many users appreciate the clear digital readouts and the intuitive interface, which simplifies operation without compromising on functionality. The sensors have consistently received praise for their ability to maintain calibration stability over extended periods, reducing downtime and enhancing productivity.

    Frequently asked questions often revolve around the longevity of the sensors and their adaptability to varying pH environments. Our team assures that these sensors are built to last, offering reliable measurements across diverse conditions. Another common query concerns cleaning and maintenance; our sensors are designed for minimal upkeep, with straightforward procedures that extend their operational life.
