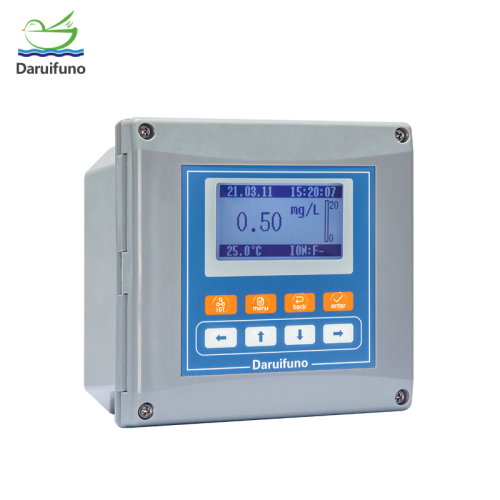

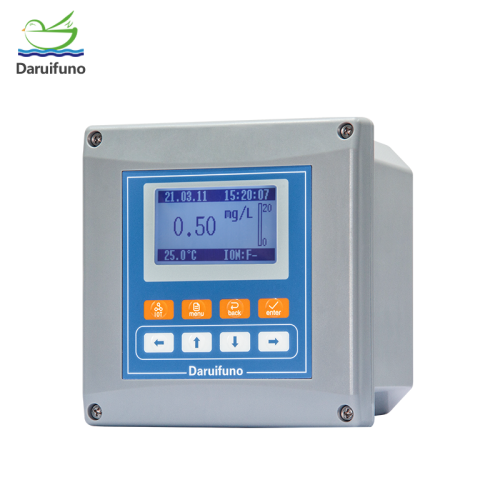

4-20mA universal Online Ion Concentration Controller

4-20mA universal Online Ion Concentration Controller

Get Latest Price

option	Fluoride ion Chloride ion Potassium ion Ammonium ion
Contact Now

Model No.: APION2

Brand: daruifuno

Certification: ISO9001

Relay Output: two SPST relays

Protection Grade: IP66

Support Customization: Oem

Place Of Origin: China

Measuring Objects: ion

Analog Output: two 0/4~20mA current

Communication: RS485

Dimension: 144*144*120mm

Description

Product Description

The APION online ion concentration controller developed and produced by Daruifuno is mainly used to monitor the concentration of various ions. The principle of this ion concentration controller is based on the ion selective electrode method. There is no need to add any reagents during the detection process, and there is no secondary pollution.

We currently support the connection of chloride, sodium, potassium, fluoride, ammonium, calcium, and more. The controller adopts a 3.2-inch LCD screen, IP66 protection level, with 2 SPST relays and 2-way 0/4-20mA current output. Communication is RS485 interface, supports Modbus communication protocol. The power supply can be DC or AC wide voltage power supply. Our company also provide pH ORP Controller, Conductivity Controller and chlorine analyzer. They are used for online water monitoring.

Features

Based on ion selective electrode method, can connect to fluoride ion sensors and other ion sensors.
There is no need to add any reagents during the detection process, and there is no secondary pollution.
Abundant output, satisfying monitoring, dosing control, and remote transmission of data signals at the same time.
The Universal Ion Controller has 2 configurable SPST multi-function relays.
With 2 high-precision 0/4~20mA current outputs.
With a two-wire RS485 interface of the universal ion controller, support Modbus.
3.2-inch large graphic dot matrix LCD screen, Chinese and English display, rich in content.
Provide AC and DC power supply modes, both of which are wide voltage power supply.

Specification

Measurements	Ion?concentration
Measuring Range	Related to ion electrodes
Resolution	Related to ion electrodes
Temp. Compensation	automatic or manual
Accuracy	3% of the measuring range
Stability	0.05% of the measurement range every 24 hours, no accumulation
Repeatability	0.1% better than measuring range
Display Screen	3.2 inch LCD screen
System Language	English
Calibration Method	Standard solution, comparison calibration, correction calibration, etc.
Power Protection	The setting data is permanently retained, when the meter is powered off.
Password	Six-digit passcode setting
Relay Output	2 configurable SPST relays,max. load 3A/250VAC,setting objects: high/low alarm, temperature or wash control
Current Output	Two 0/4~20mA can be set with an active current loop, load 1000Ω, and support long-term calibration
Protection Grade	IP66
Working Temperature	0~60°C, relative humidity less than 95%RH (no condensation)
Storage Temperature	-20~70°C, relative humidity less than 95%RH (no condensation)
Dimension	144144120mm
Material	enhanced ABS
Installation Method	panel, wall, pipe installation, hole size:138*138mm
Electrical Interface	3 M12*1.5 gland heads, wire diameter 3~6.5mm
Power Supply	AC：100～240VAC, 50~60Hz；DC：18~36VDC
Power Consumption	3W
