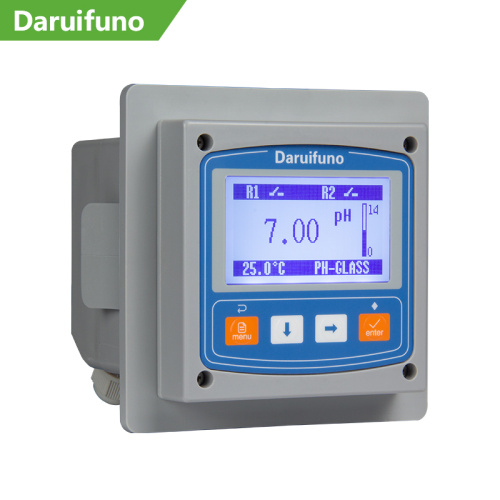

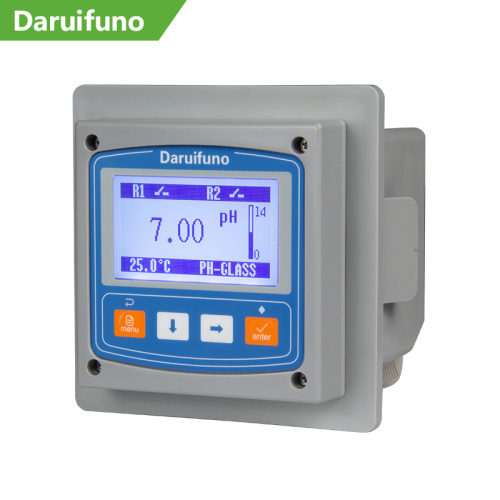

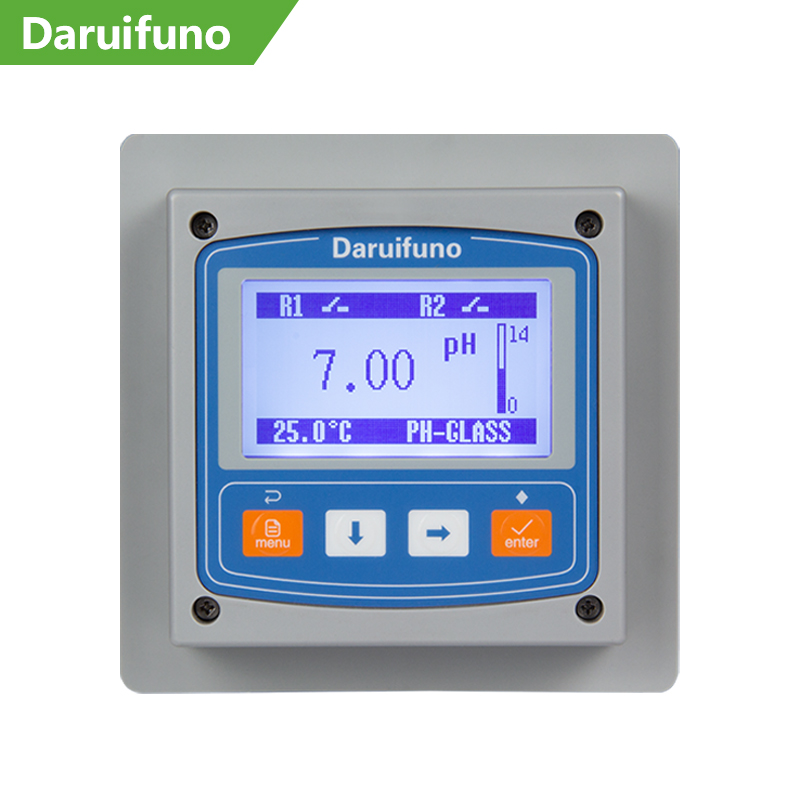

APX1-C1Z pH ORP Controller for Water Measurement

Overview

The APX1-C1Z pH ORP Controller is a precision instrument designed for monitoring and controlling the pH and ORP (Oxidation-Reduction Potential) levels in various water applications. With its advanced features, robust design, and user-friendly interface, this controller ensures accurate and reliable measurements, making it ideal for a wide range of water quality monitoring tasks.

?

Key Features

• High accuracy and stability for precise measurements
• Wide measuring range: pH 0~14, ORP ±2000mV
• Dual relay control for automated system responses
• 0/4-20mA current output for integration with other systems
• RS485 interface with Modbus protocol for easy communication
• IP66 protection grade for rugged environments
• Versatile power supply options: AC 100~240V or DC 18~36V

Product Specifications

Product Name	Online pH/ORP Controller
Product Model	APX1-C1Z
Measuring Range	pH: 0~14pH, ORP: ±2000mV
Resolution	pH: 0.01pH, ORP: 1mV, Temp: 0.1℃
Accuracy	0.1% of the measuring range or pH ±0.02, ORP ±2mV
Relay Control	2 settable SPST relays, max. load 3A/250V AC
Current Output	0/4-20mA current output
Digital Output	RS485 interface, support Modbus protocol
Protection Grade	IP66
Power Supply	100~240V AC or 18~36V DC
Power Consumption	About 3 W
Operating Temperature	0~60℃
Storage Environment	-20~70℃
Meter Size	100*100*120mm
Mounting Method	Panel mounting, mounting hole size 92*92mm

?

?

Related Water Applications

The APX1-C1Z pH ORP Controller is suitable for a variety of water applications, including:

• Swimming pools and spas for maintaining water balance
• Aquariums for ensuring optimal living conditions for aquatic life
• Water treatment plants for monitoring and controlling treatment processes
• Industrial processes such as cooling towers, boilers, and waste water treatment
• Agricultural irrigation systems for optimizing crop growth conditions
