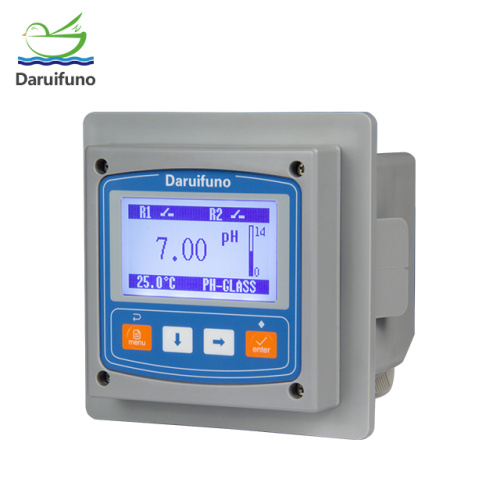

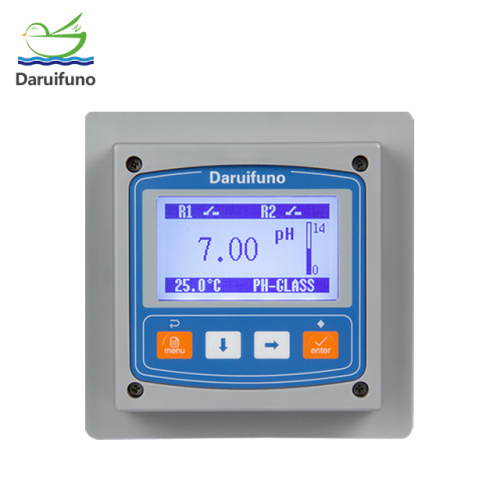

pH Controller

Get Latest Price

Measuring range	0~14pH
option	AC 100~240V DC 18~36V
Contact Now

Model No.: APX1-C1Z

Brand: daruifuno

Certification: ISO9001

Support Customization: Oem

Place Of Origin: China

Warranty Period: 1 Year

Certification: CE, ISO9001

Measuring Range: 0~14pH, -2000~2000mV

Temperature Compensation: Automatic or manual

Resolution: 0.01pH, 1mV, 0.1℃

Display Screen: 3.2 inch LCD

Relay Control: Two SPST relays

Current Output: A 0/4-20mA

Protection Grade: IP66

System Language: English

Description

Product Description

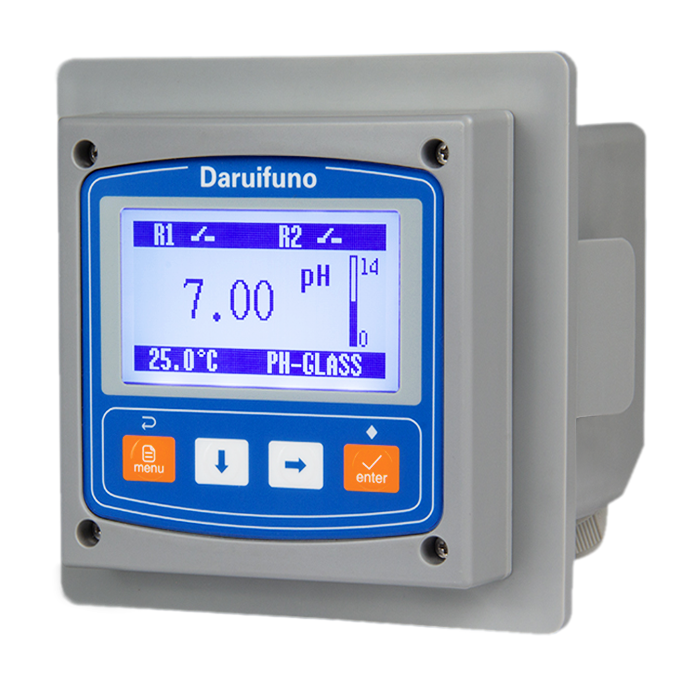

pH ORP controller manufacturer Supplier CHINA DRFN

As a manufacturer and supplier of Water Quality Analyzer sensors from China, Delfino has developed an industrial online pH ORP Controller APX1-C1Z. It has a 0/4-20mA current output and a two-wire RS485 communication interface, supports the Modbus communication protocol, and can meet the needs of customers with different output data. 2 multifunctional relays can control pH dosing, sensor cleaning and temperature control. The protection level of the online pH meter is IP66, which is waterproof and dustproof in the outdoor environment. The power supply is of wide voltage, providing DC 18~36V or AC 100~240V options, which can prevent interference caused by unstable power supply.

The features of the pH ORP controller is as following:

Large-size LCD display screen, the contrast of the screen can be adjusted
The online pH controller has a password setting function to prevent misuse
Support pH three-point calibration, ORP two-point calibration of the PH Sensor and ORP Sensor, calibration points can be set by yourself
With a RS485 digital interface, it supports standard Modbus communication protocol
There are two multi-function relays, high and low alarms can be set, and the load is 1000 ohms
The material is reinforced ABS, and the protection level of the pH controller is IP66
Provide a quick calibration menu, which is convenient for customers to quickly calibrate the controller and electrodes

Specification

Measurements	pH, ORP
Measuring Range	pH: 0~14pH? ?ORP: -2000~2000mV? ?Temp.: -10~150℃
Resolution	pH: 0.01pH? ?ORP: 1mV? ?Temp.: 0.1℃
Temp. Compensation	automatic (PT1000/NTC10K) or manual
Accuracy	0.1% of the measuring range or pH: ± 0.02pH, ORP: ±2mV, take the larger one
Stability	0.05% of the measurement range every 24 hours, no accumulation
Repeatability	0.1% better than measuring range
Display Screen	3.2 inch LCD screen
System Language	English
Calibration Method	pH: 3 points; ORP: 2 ponits, the calibration points can be set
Power Protection	The setting data is permanently retained, when the pH meter is powered off
Password	Six-digit passcode setting
Quick Calibration	A quick calibration menu is available without going to the main menu

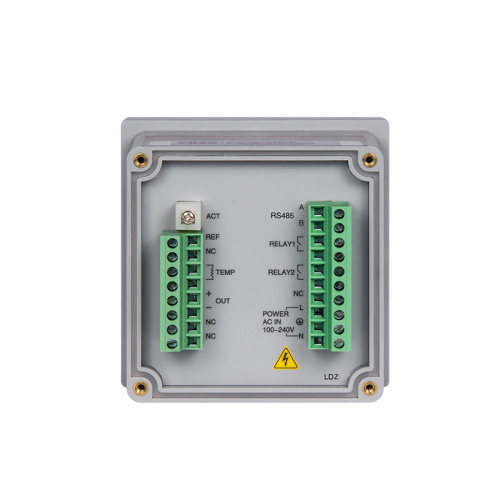

Relay Output	2 SPST relays,max. load 3A/250VAC, setting objects: high/low alarm, temperature or wash control
Current Output	A 0/4~20mA can be set with an active current loop, load 1000 ohm, and support long-term calibration
Digital Output	A two-wire RS485 interface, support Modbus protocol
Protection Grade	IP66
Work Temp.	0~60°C, relative humidity less than 95%RH (no condensation)
Storage Temp.	-20~70°C, relative humidity less than 95%RH (no condensation)
Dimension	100100120mm
Material	enhanced ABS
Installation Method	panel installation, hole size:92*92mm

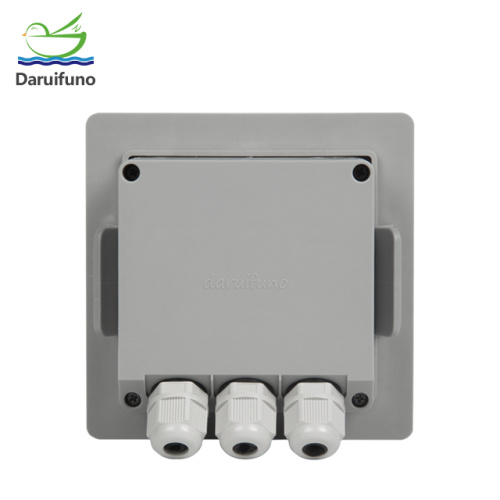

Electrical Interface	3 M12*1.5 gland heads, wire diameter 3~6.5mm
Power Supply	AC：100～240VAC, 50~60Hz；DC：+18~36VDC
Power Consumption	3W
