Features?

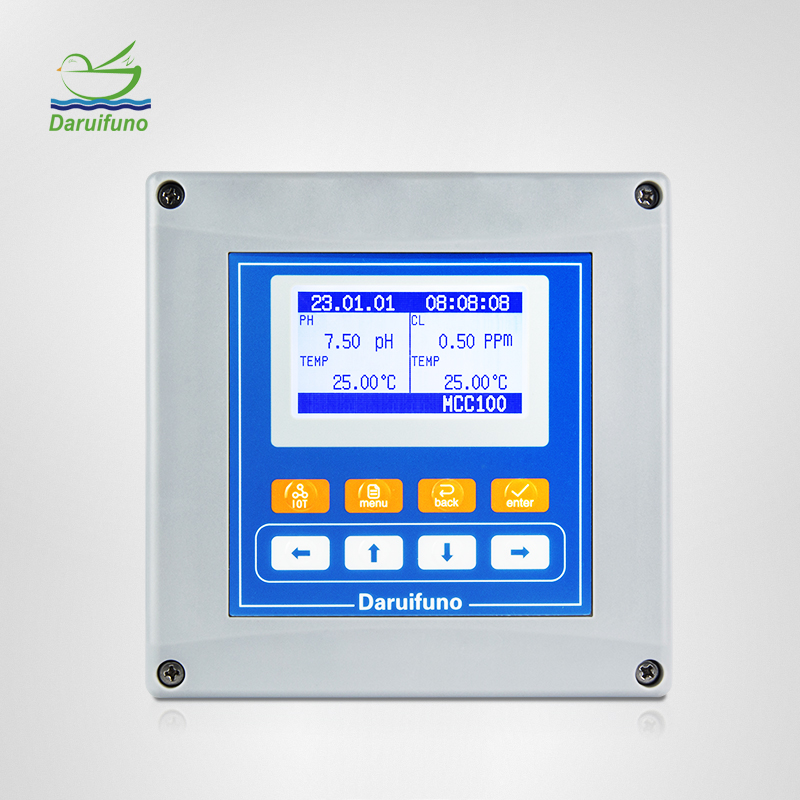

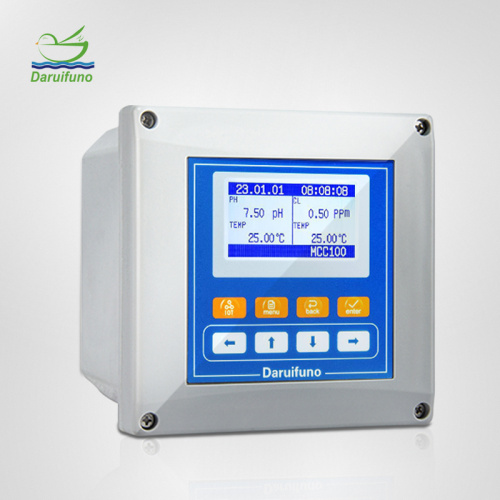

| Product Name | Two-parameter Water Quality Meter |
| Product Model | MCC100-A2 |
| Brand Name | Daruifuno |
| Channels | 2 channels input |
| Detection Object | pH, Temp, conductivity, TDS, salinity, dissolved oxygen, turbidity, chlorine, ORP, COD, ammonia |
| PH Sensor | principle: glass electrode method |
| range: 0~14pH, 0~50℃ | |
| accuracy: 0.01pH | |
| Conductivity Sensor | principle: 2-electrode or 4-electrode |
| range: 0~10mS/cm automatic switching, 0~50℃ | |
| accuracy: 1% of the measuring range | |
| Dissolved Oxygen Sensor | principle: fluorescence method |
| range: 0~20mg/L, 0~50℃ | |
| accuracy: ±0.1mg/L? | |
| Turbidity Sensor | principle: infrared 850nm 90°?scattered light method |
| range: 0~1000NTU, 0~4000NTU | |
| accuracy: <±1% of the measuring range | |
| COD Sensor | principle: UV254 |
| range: 0.75~500mg/L, 1~1500mg/L | |
| accuracy: ±3% of the measuring range | |
| Configuration Information | Power failure protection, indefinite retention of parameters |
| Language | English |
| Temperature Compensation | Automatic or manual |
| Operating Temperature | 0~60℃ RH<95% |
| Storage Temperature | -20~70℃ RH<55% |
| Relay Output | Two SPST relays, max. Load 3A/250V AC |
| Communication Method | RS485 interface |
| Communication Protocol | Modbus RTU, support JSON text |
| Time/Data Logging | Accurate to the second, record 7800 historical data,?support data download |
| Recording interval can be set between 1 and 999 minutes | |
| Display | 3.2 inch 128*64 LCD screen |
| Protection Grade | IP66 |
| Material | Enhanced ABS |
| Dimensions | 144*144*120mm |
| Mounting | wall mounting, pipe clamp, panel mounting (open hole size 138*138mm) |
| Power Supply | AC: 100~240V, 50/60Hz or 18~36V DC |
| Power Consumption | 24W |
| Weight | 1600g |
