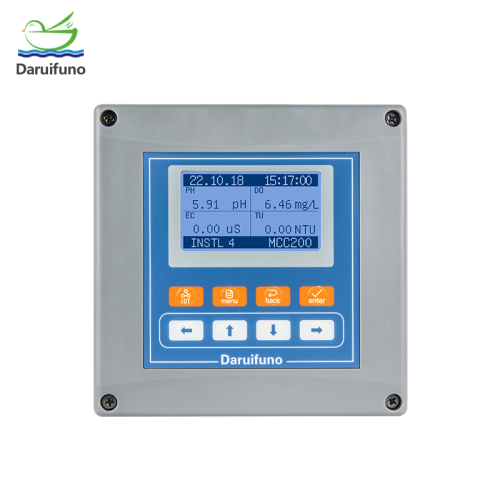

MCC200 Inline & Online Multiparameter Meter

Get Latest Price

Measuring range	pH: 0~14pH EC: 0~10mS/cm DO: 0~20mg/L TU: 0~1000NTU
option	AC 100~240V DC 18~36V
Contact Now

Model No.: MCC200-A4

Communication Interface: RS485

Dimension: 144*144*120mm

Protection Grade: IP66

Support Customization: Oem, Odm

Place Of Origin: China

Measuring Object: pH, EC, TU, DO, ORP, CHL

Relay Output: A wash relay

Product Name: Inline & Online Multiparameter Meter

Description

Product Description

Description

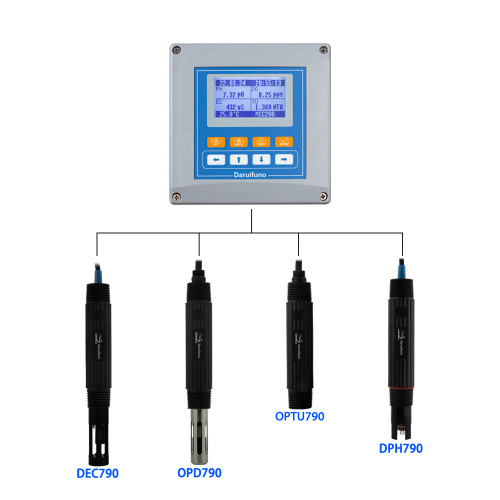

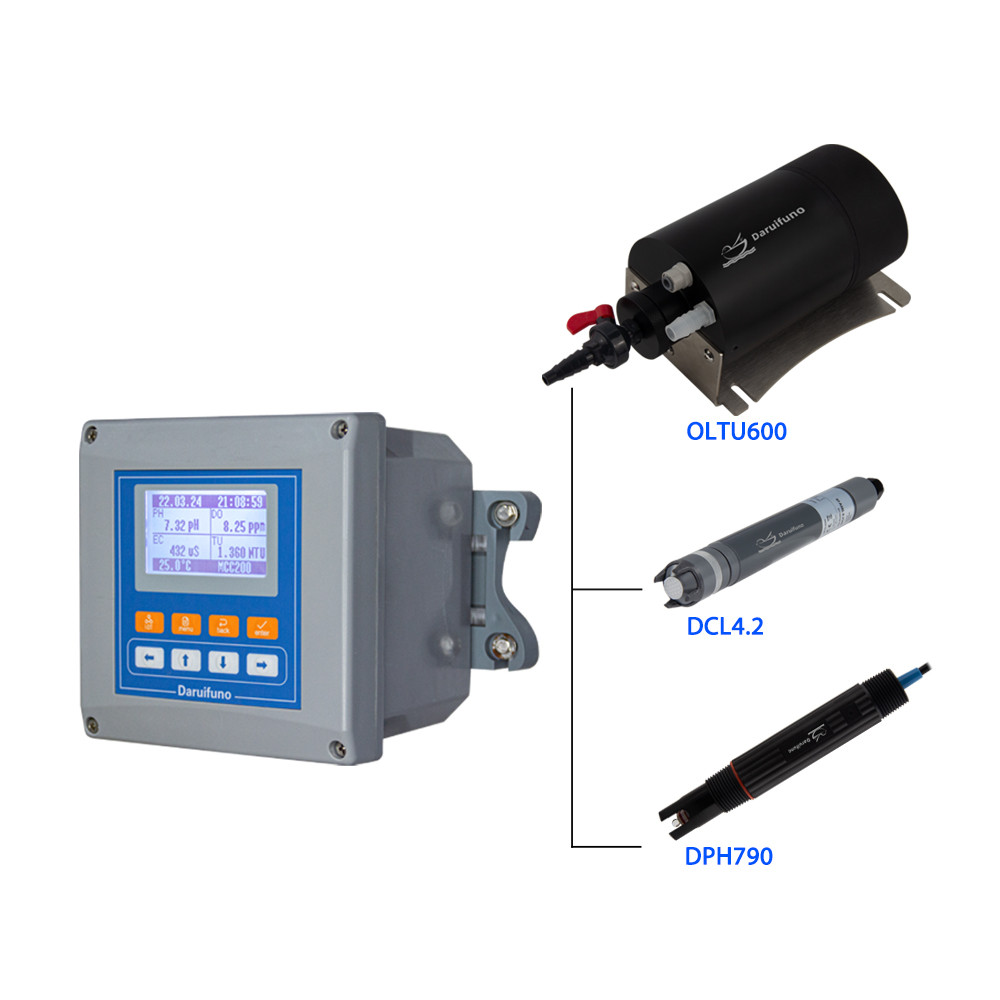

Daruifuno's MCC200-A4 inline & online multiparameter meter is designed for different industry needs. It mainly consists of controller and sensor. One controller can be connected with different digital sensors to realize simultaneous monitoring of different parameters and display them on one interface at the same time. The measured parameters include digital sensors developed by delfino: PH Sensor, ORP Sensor, Conductivity Sensor, Dissolved Oxygen Sensor, Turbidity Sensor, Chlorophyll Sensor, residual Chlorine Sensor, etc. The displayed parameters are not only the main parameters but also the parameters obtained by conversion. For example, the conductivity sensor can not only display the conductivity but also the resistivity and TDS value; the COD Sensor can not only display the value of COD but also the value of BOD and TOC. value. Users can freely use with different sensors, plug and play, the controller can automatically identify the sensor. This inline & online multiparameter meter?has an RS485 interface for data output.

multiparameter water meter

Features

The digital universal controller of the MCC200 series online multiparameter meter can measure physical, chemical, biological and other parameters by connecting various types of digital sensors.

Customized multi-parameter?meter

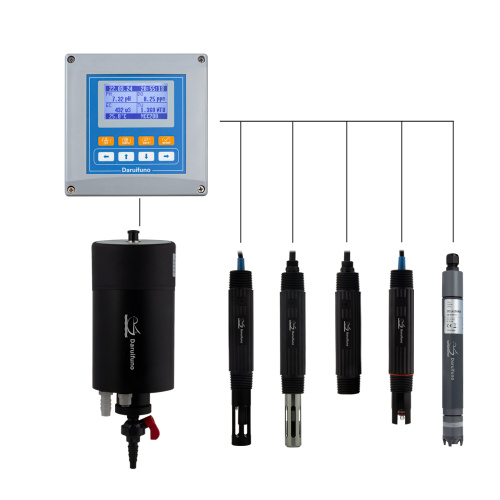

Daruifuno MCC200 multiparameter meter has 4 digital channels, it can be connected with pH, dissolved oxygen, conductivity, turbidity, chlorine, tds, salinity, ORP digital sensors. It can measure up to 5 parameters(temperature).
Accurate and stable data display
The controller requires these authorized sensors to upload the detected data in a special encrypted communication way to ensure that the controller can collect high-precision data more stably.
Communication and control
The MCC200 inline & online multiparameter meter?has a RS485 interface and the communication protocol is Modbus RTU.

The multiparameter?meter has a relay for wash relay, the sensors which has cleaning brush, can realize automatic cleaning by setting on the controller.

Various installation methods
The dimension of the controller is 144*144*120mm, support wall mount, pipe clamping, panel.
