PH/CL/TU/ORP online multiparameter water quality controller



PH/CL/TU/ORP online multiparameter water quality controller

Get Latest Price

option	AC 100~240V DC 18~36V
Contact Now

Model No.: MCC200-A4

Brand: daruifuno

Certification: ISO9001

Communication Interface: RS485

Dimension: 144*144*120mm

Protection Grade: IP66

Support Customization: Oem

Place Of Origin: China

Product Name: multiparameter water quality analyzer

Description

Product Description

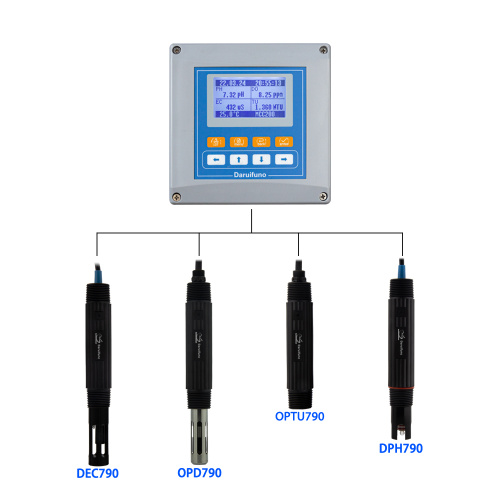

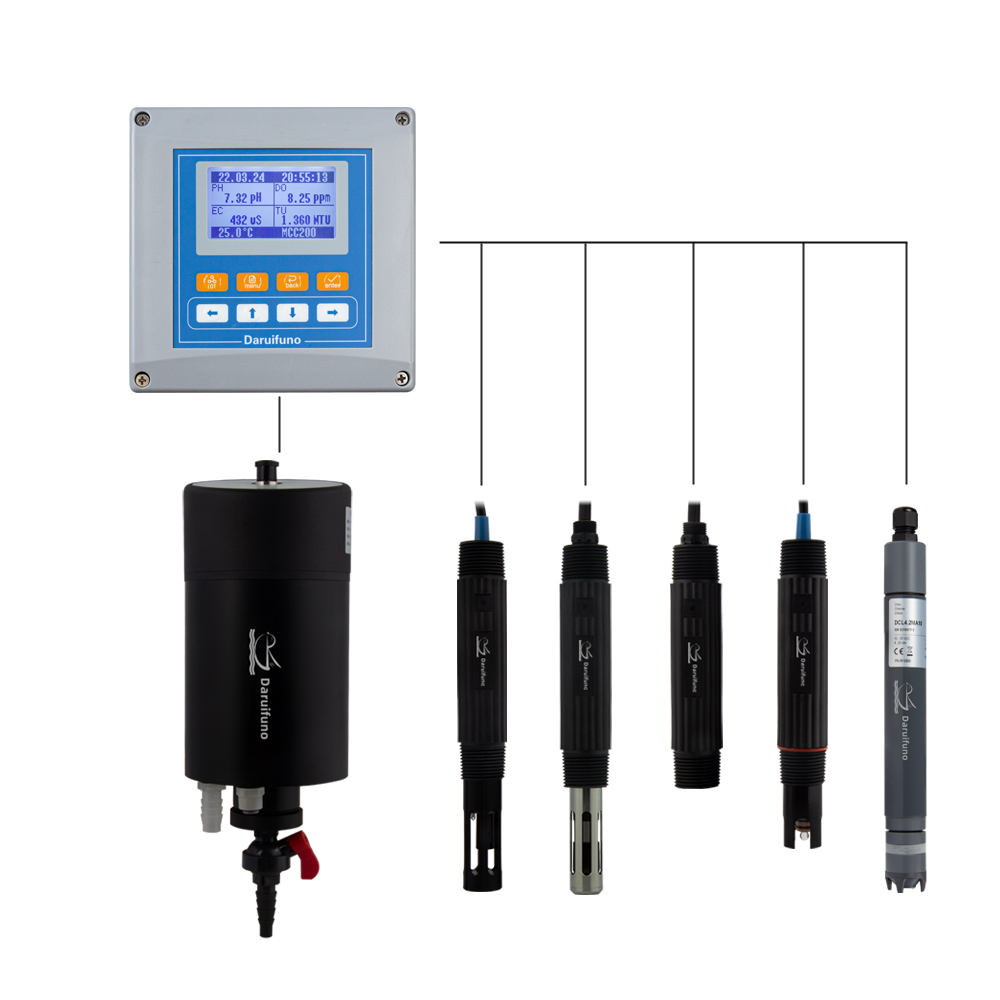

Multi-parameter analyzer MCC200-A4 supports connection with 2~4 digital sensors. Digital pH Sensor, Conductivity Sensor, Dissolved Oxygen Sensor, Turbidity Sensor and COD Sensor, ammonia nitrogen sensors and residual Chlorine Sensor, etc. produced by daruifuno. Users can mix and match according to their own needs, such as the five parameters of conventional surface water: pH, conductivity, dissolved oxygen and turbidity; the application of secondary water supply: pH, residual chlorine and turbidity, etc. This multi-parameter analyzer has an RS485 communication interface and supports the Modbus communication protocol. We have also designed matching modules that can support current and relay outputs. It is not necessary to make it in the controller, it is an optional product. There are also various installation methods for the instrument, which can be panel, wall-mounted or pipe-mounted. The protection grade is IP66, which can prevent rainwater splashing even outdoors.

Features Of Multiparameter controller

The MCC200 series multi-parameter digital universal controller realizes measurement by connecting various types of digital sensors for detecting physical, chemical, biological.
1. Customized multi-parameter analyzer
Daruifuno MCC200 multi-parameter water quality meter has 4 digital channels, it can be connected with pH, dissolved oxygen, conductivity, turbidity, chlorine, tds, salinity, ORP digital sensors.?It can measure up to 5 parameters(temperature).
2. Accurate and stable data display
The controller requires these authorized sensors to upload the detected data in a special encrypted communication way to ensure that the controller can collect high-precision data more stably.
3. Communication and control
The MCC200 multi-parameter Water Quality Analyzer has a RS485 interface and the communication protocol is Modbus RTU.
The multiparameter water quality meter has a relay for wash relay, the sensors which has cleaning brush, can realize automatic cleaning by setting on the controller.

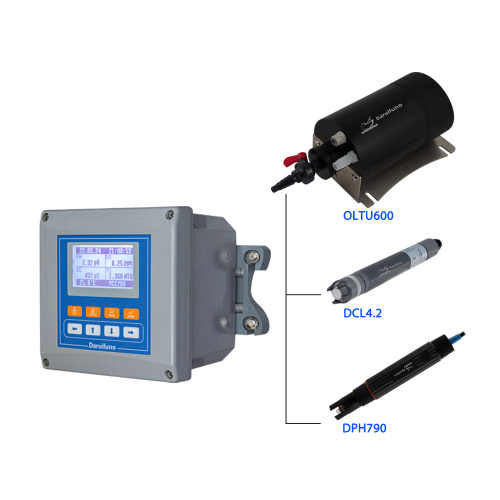

4. Various installation methods
The dimension of the controller is 144*144*120mm, support wall mount, pipe clamping, panel.

Specification Of Multi-parameter Analyzer

Product Name	Multi-parameter Water Quality Meter
Product Model	MCC200
Brand Name	Daruifuno
Channels	1~8 channels input
Detection Object	pH,Temp, conductivity, TDS, salinity, dissolved oxygen, turbidity, chlorine, ORP, COD, ammonia
PH Sensor	principle: glass electrode method
	range: 0~14pH, 0~50℃
	accuracy: 0.01pH
Conductivity Sensor	principle: 2-electrode or 4-electrode
	range: 0~10mS/cm automatic switching, 0~50℃
	accuracy: 1% of the measuring range
Dissolved Oxygen Sensor	principle: fluorescence method
	range: 0~20mg/L, 0~50℃
	accuracy: ±0.1mg/L?
Turbidity Sensor	principle: infrared 850nm 90°?scattered light method
	range: 0~1000NTU, 0~4000NTU
	accuracy: <±1% of the measuring range
Configuration Information	Power failure protection, indefinite retention of parameters
Language	English
Temperature Compensation	Automatic or manual
Operating Temperature	0~60℃ RH<95%
Storage Temperature	-20~70℃ RH<55%
Relay Output	Wash control, max. Load 3A/250V AC
Communication Method	RS485 interface
Communication Protocol	Modbus RTU, support JSON text
Time/Data Logging	Accurate to the second, record 7800 historical data,?support data download
Time/Data Logging	Recording interval can be set between 1 and 999 minutes

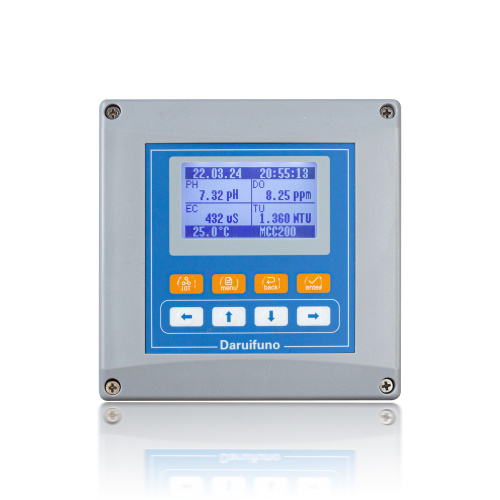

Display	3.2 inch 128*64 LCD screen
Protection Grade	IP66
Material	Enhanced ABS
Dimensions	144144120mm
Mounting	wall mounting, pipe clamp, panel mounting (open hole size 138*138mm)
Power Supply	AC: 100~240V, 50/60Hz or 18~36V DC
Power Consumption	<24W
Weight	1600g
