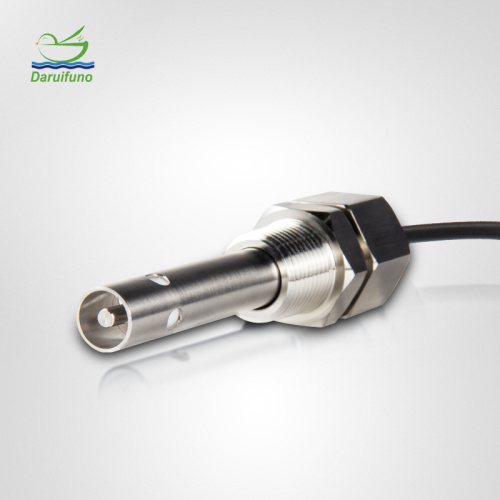

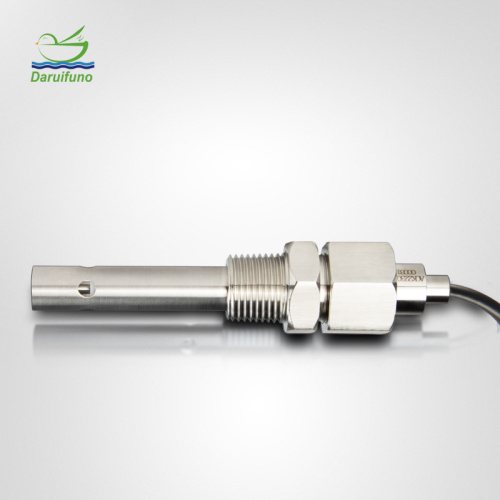

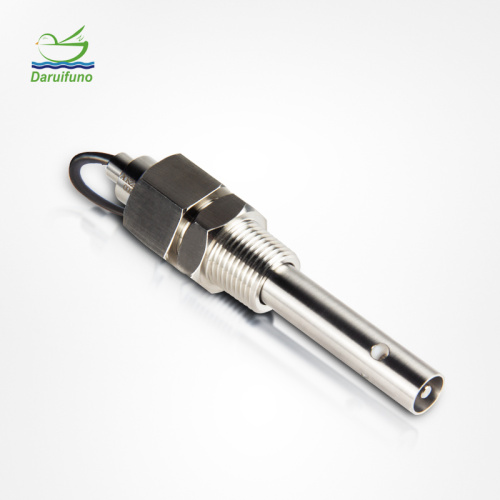

The Electrical Conductivity Sensor can be used to accurately measure the?electrical conductivity value in surface water samples to verify the presence and extent of pollutants in surface water. The ASCK-0.1 analog electrical Conductivity Sensor developed and produced by Daruifuno is for water quality in the?electrical conductivity range of 5~200μS/cm And designed online electrode. Of course, the?electrical conductivity range of surface water is different. Customers can choose the corresponding?electrical conductivity electrode according to the?electrical conductivity range of surface water that you want to monitor. Generally, the?electrical conductivity of natural water is between 50 and 500 μS/cm, that of clean river water is between 100 and 300 μS/cm, that of highly mineralized water can reach 500 and 1000 μS/cm, and that of industrial wastewater can exceed 1000 μS/cm.

Features

• K constant is 0.1, measuring range is 0.5~200μS/cm
• Built-in PT1000 temperature sensor can perform temperature compensation
• The cable length is 10 meters. The cable length of the conductivity electrode can be customized.

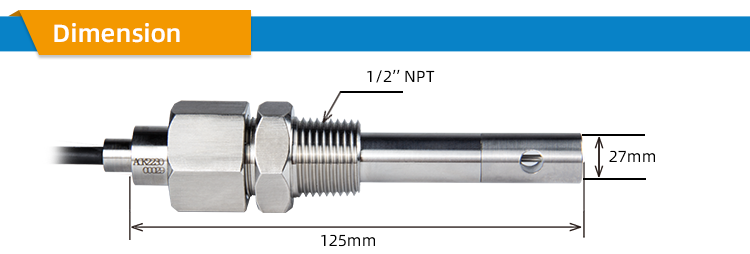

• 1/2” NPT mounting thread for easy installation

Specification

?

Factors affecting surface water conductivity:
1. Climatic conditions: Climatic conditions such as precipitation and evaporation directly affect the conductivity of surface water.
2. Geological conditions: Geological conditions determine the flow path and speed of groundwater and groundwater, thereby affecting conductivity
3. Water quality: Dissolved substances, suspended solids and organic matter in the water will affect the conductivity
4. Human activities: Industry, agriculture, daily life and other activities will emit large amounts of pollutants, leading to an increase in the conductivity of surface water.

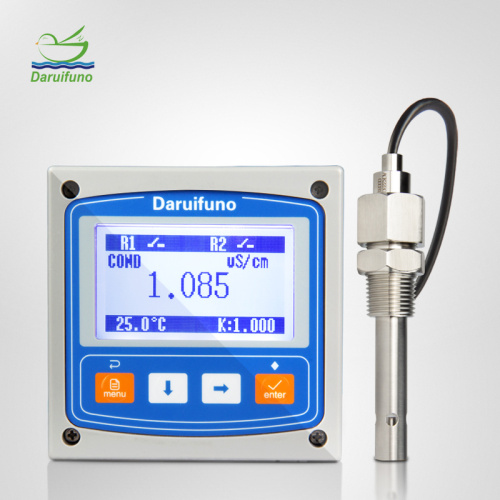

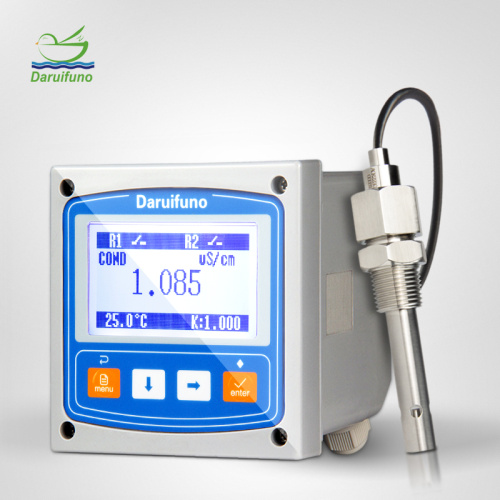

In addition to electrode conductivity sensors with K constants of 0.1, we also provide electrode conductivity sensors with K constants of 1 and 0.01. Matching conductivity controllers are also provided. The Conductivity Controller has 2 relays and 2 channels of 4-20mA. Current output can output conductivity value, TDS, resistivity, salinity, and temperature values. Delfino company focuses on the R&D and production of water quality analysis instruments. Our measurement parameters include pH, ORP, conductivity, TDS, salinity, dissolved oxygen, COD, ammonia nitrogen, turbidity, chlorophyll, blue-green algae, residual chlorine, and chlorine dioxide. wait. In addition to conductivity sensor, our main products include pH ORP analyzer, conductivity analyzer, turbidity analyzer, COD analyzer, dissolved oxygen analyzer, ammonium analyzer, chlorine analyzer, etc.
