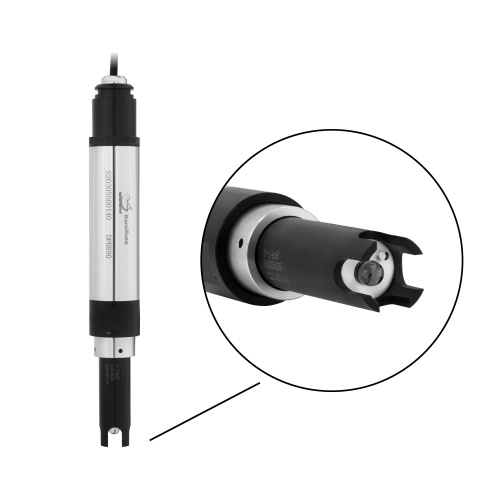

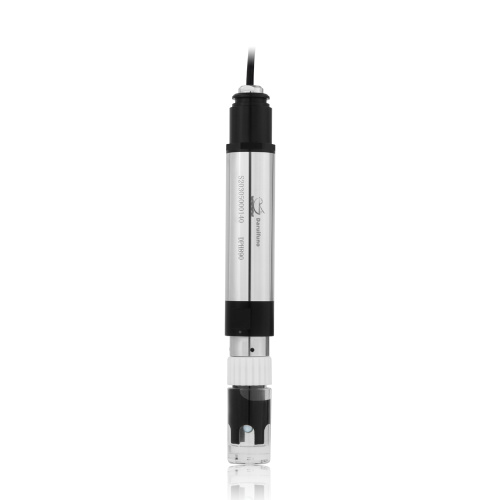

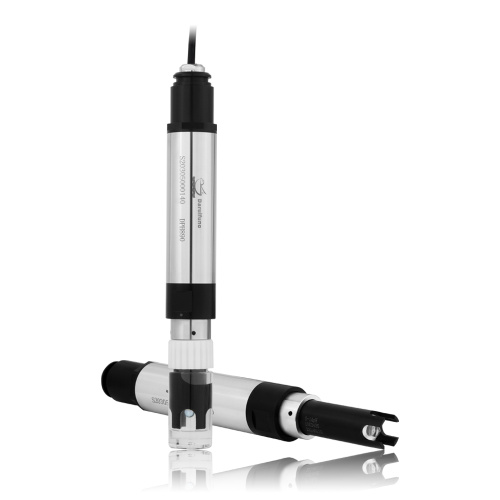

316L SS water quality online digital pH sensor
316L SS water quality online digital pH sensor
316L SS water quality online digital pH sensor
316L SS water quality online digital pH sensor

316L SS water quality online digital pH sensor

Get Latest Price
    Measuring range
    option
    Contact Now
    Share:

    Model No.DPH890

    Branddaruifuno

    CertificationISO9001

    Signal TypeDigital

    Working Pressure0~1bar

    Working Temperature0~50℃

    DimensionDiameter 38mm/Length 270mm

    Power Supply9~24V DC

    Support CustomizationOem

    Place Of OriginChina

    Measuring Range0~14pH

    CompensationAutomatic temp.

    Protection GradeIP68

    Description
    Product Description

    pH value is an important indicator to reflect the degree of acid and alkali of water quality, which can directly reflect the acid and alkali nature of sewage, and has an important impact on the effect of sewage treatment and the quality of environmental discharge. If the pH value is too high or too low, it will have a negative impact on the environment, resulting in an imbalance in the pH of the water body, causing harm to aquatic organisms, and even causing failure and damage to sewage treatment equipment. The DPH890 rs485 pH Probe is an online Digital pH Sensor which can test the water pH value continuously.

    The importance of water quality pH value to environmental protection discharge is that environmental protection discharge requires the water quality after sewage treatment to meet a certain standard, if the pH value is too high or too low, it will affect the stability and biochemistry of water quality, resulting in organic matter and inorganic matter in the water body can not be degraded, thereby affecting the purification effect of the water body, and even causing adverse effects on the environment and human health. Therefore, monitoring and controlling the pH value of water quality is an important part of environmental discharge. So choose a high quality pH electrode is very important. The digital PH Sensor has the following advantages:

    • Quick change of pH or OPR measurement unit
    • Internal storage of calibration data, the Digital ORP Sensor, supports offline calibration, on-site plug and play
    • Standard Modbus protocol, support access to standard industrial control system and Digital PH ORP Controller
    • IP68 protection grade, can be used in water for a long time


    Specification

    Product Name Digital PH sensor?
    Product Model DPH890
    Measuring Range pH: 0~14pH?TEMP: 0~50℃
    Resolution 0.01pH /0.1℃
    Accuracy 0.1% of the range or ±0.02pH, take the larger one; Temp: ±0.5℃
    Communication RS485 MODBUS-RTU
    Working Pressure 0~1Bar
    Sample Flow Rate 0.5m/s≥flow rate≥0.001m/s
    Temperature Compensation built-in temperature unit, automatic temperature compensation
    Response Time T90< 10s
    Calibration Zero position calibration, slope calibration, offset calibration
    Operating Temperature 0~50℃
    Storage Temperature 0~60℃
    Shaft Material POM+SS 316L or Ti (customized)
    Dimensions Diameter 38mm / Length270mm
    Protection Grade IP68
    Installation Dimensions Immersed or piped installation (Requires mounting accessory support)
    Lead interface Split M16 connector
    Power Supply 9~24V DC
    Power Consumption 0.2W

    digital ph probe
    water ph sensor
    Our company also provides many other water quality analysis instruments, ph meters, conductivity meters, turbidity meters, COD Sensor and Chlorine Sensor. If you are interested in our products, please contact us!
