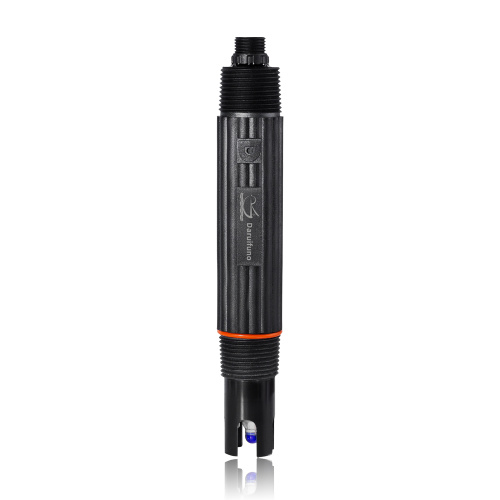

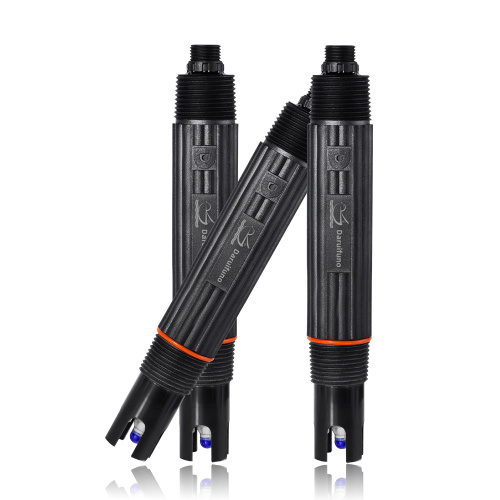

The Digital pH Sensor is an instrument used to measure the pH of water or other liquids. Its principle is based on the change of the acid-base indicator to measure the pH of the liquid. The PH Sensor changes the color of the indicator by contacting the liquid with an acid-base indicator, and then measures the concentration of hydrogen ions (H+) in the liquid through an electrode to determine the pH of the liquid. The working principle of the pH sensor is relatively simple, but it is very important for environmental monitoring. The DPH790 is a digital pH sensor with RS485 interface, it is different from the analog pH sensor.
The role of pH sensors in environmental protection mainly includes the following aspects:
1. Monitoring the pH of the water body: PH sensors can be used to monitor the pH of the water body, so as to detect abnormalities in the pH of the water body in time, so as to take timely measures.
2. Detection of pollutants: the presence of many pollutants will cause changes in the pH of the water, so the pH sensor can be used to detect the presence of pollutants in the water.
3. Environmental monitoring: PH sensors can also be used to monitor the pH in the atmosphere, soil and other environments, so as to detect environmental pollution problems in time.
Specification
| Product Name | digital PH sensor electrode |
| Product Model | DPH790 |
| Measuring Range | 0~14pH |
| Resolution | 0.01pH |
| Accuracy | 0.1% of the range or ±0.02pH, take the larger one; Temp: ±0.5℃ |
| Communication | RS485 Modbus RTU |
| Response Time | T90＜10s |
| Working Pressure | 0~4Bar |
| Temp. Compensation | built-in temperature unit, automatic temperature compensation |
| Operate Temperature | 0~50℃ |
| Calibration Method | Zero position calibration and slope calibration |
| Shaft Material | PPS |
| Dimensions | Diameter 35mm / Length220mm |
| Protection Grade | IP68 |
| Installation | 1 inch NPT at both ends; Immersed or piped installation |
| Power Supply | 9~24V DC |
| Cable | Standard 5 meters |
