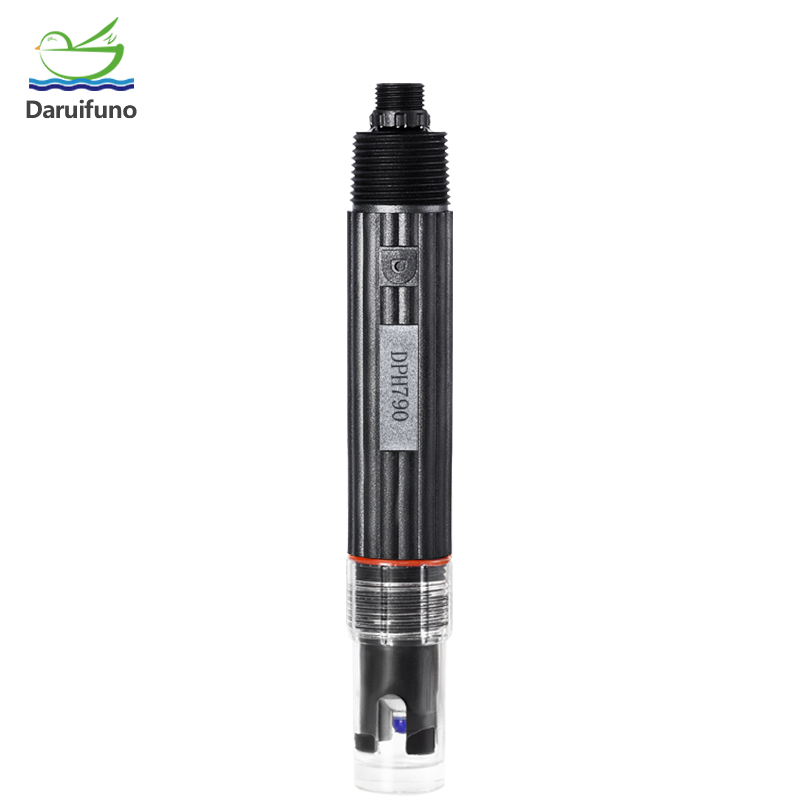

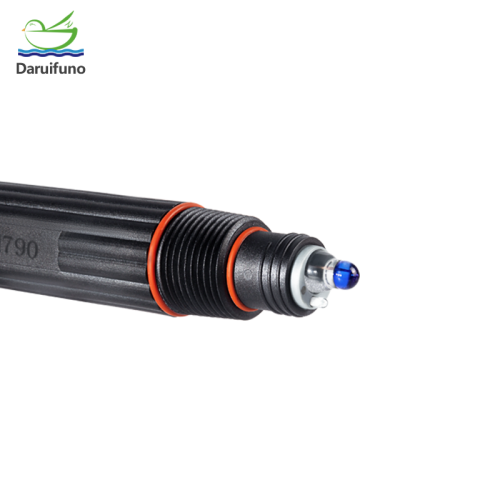

The Online Digital Modbus PH Sensor developed and produced by Daruifuno is designed for real-time pH monitoring of water quality. Digital electrodes offer higher measurement accuracy, ensuring precise pH readings with real-time output. Unlike analog pH sensors, digital sensors provide direct real-time digital output without requiring additional conversion devices. This is achieved through its internal RS485 interface, which supports the Modbus communication protocol, enabling seamless integration with various equipment and systems.
The DPH790 Online Digital Modbus?pH Sensor features internal calibration data storage, allowing for plug-and-play functionality. Its latest design incorporates a PPS shell, which is resistant to high temperatures and corrosion, making it suitable for harsh environments. The sensor is highly stable and durable, with a modular structure for easy installation and use.
?
The Online Modbus pH Sensor is widely used in laboratories, scientific research, industrial process control, water treatment, environmental monitoring, agriculture, hydroponics, the food and beverage industry, swimming pools, and more. It supports continuous monitoring of drinking water, tap water, and sewage.
?
| Product Name | Modbus pH Sensor |
|---|---|
| Product Model | DPH790 |
| Measuring Range | 0~14 pH |
| Resolution | 0.01 pH |
| Accuracy | 0.1% of range or ±0.02 pH (whichever is larger); Temp: ±0.5℃ |
| Communication | RS485 Modbus RTU |
| Response Time | T90 < 10s |
| Working Pressure | 0~4 Bar |
| Temperature Compensation | Built-in temperature unit with automatic compensation |
| Operating Temperature | 0~50℃ |
| Calibration Method | Zero position and slope calibration |
| Shaft Material | PPS |
| Dimensions | Diameter 35mm / Length 220mm |
| Protection Grade | IP68 |
| Installation Dimensions | 1-inch NPT at both ends; Immersed or piped installation |
| Power Supply | 9~24V DC |
| Cable | Standard 5 meters |
When using the Online Digital Modbus pH Sensor & Probe, ensure correct wiring for power and communication. The electrode must be calibrated before use, and the sensor should be protected from physical damage or chemical corrosion.
We offer a matching DUC2-PH Digital pH/ORP Controller, which supports additional features such as high/low alarm settings for dosing control, 4-20mA current output, time and historical data recording, and RS485 digital communication output. Additionally, we provide multi-parameter controllers that can connect multiple digital electrodes, measuring conductivity, dissolved oxygen, turbidity, COD, ammonia nitrogen, residual chlorine, and other parameters.
Contact us for more information about our Modbus pH Sensors & Probes.
