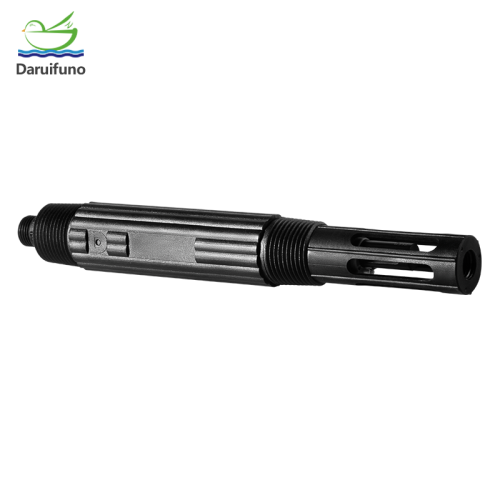

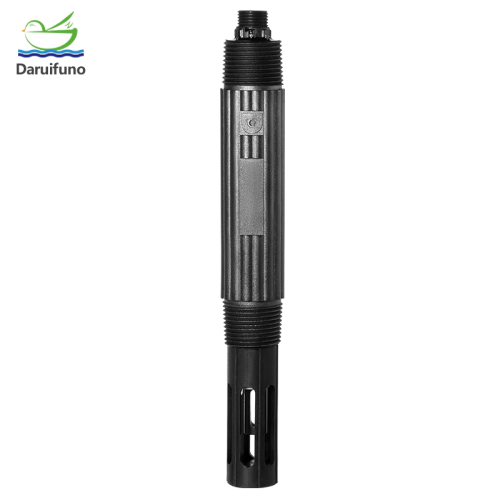

RS485 Online Digital Conductivity Sensor for Sewage

Daruifuno's DEC790 online Digital Conductivity Sensor adopts PPS shell, which is resistant to high temperature and corrosion, and is suitable for complex sewage environment. Built-in temperature sensor can realize automatic temperature compensation. The Conductivity Controller matched with the sensor is equipped with RS485 interface, plug and play, and can be directly connected to PCL, computer or other industrial control equipment for online data transmission.

?

It is crucial to measure the conductivity value of water quality. It can not only reflect the total dissolved solids in the water body, but also be used for drinking water, industrial production, environmental monitoring and agricultural irrigation. Therefore, for the monitoring and control of water quality, the conductivity value is a parameter that must be paid attention to. Monitoring the conductivity value of sewage can provide information about the concentration of dissolved ions in sewage. Conductivity refers to the resistance encountered when electric current passes through a conductor per unit length and cross-sectional area. Therefore, the higher the concentration of dissolved ions in sewage, the higher its conductivity. By monitoring the conductivity value of sewage, the ion concentration in sewage can be quickly and easily evaluated. This evaluation can help us determine the type and concentration of pollutants in sewage, so as to determine the treatment measures that need to be taken. In addition, monitoring the conductivity value of sewage can also help us understand the operation of the sewage treatment system and whether maintenance and repair are needed.

?

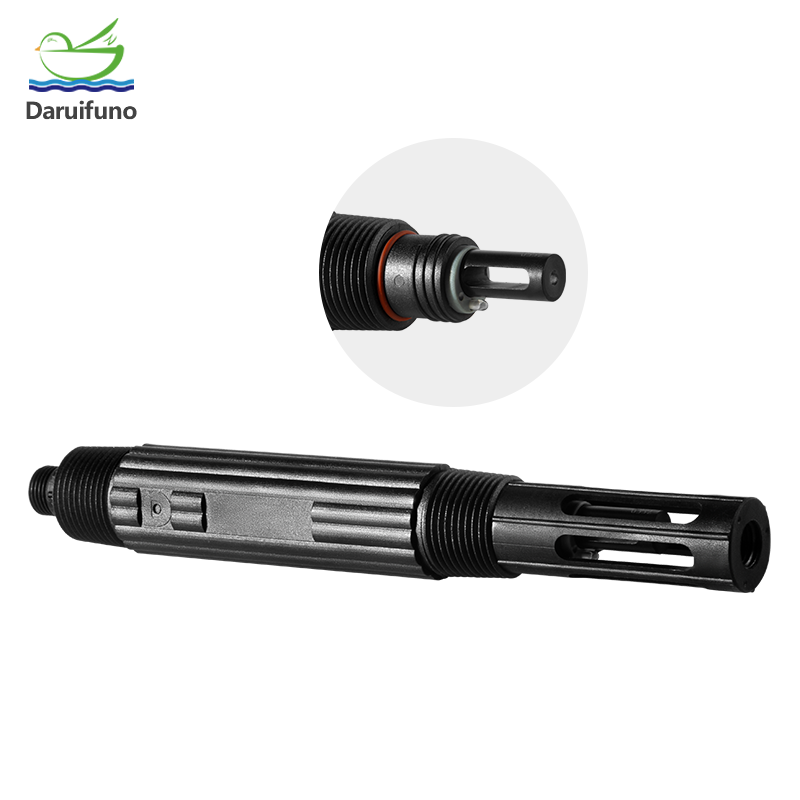

● Graphite dual electrodes, automatic range switching, easy to clean

● Electrically isolated communication and power interfaces, strong anti-interference ability

● Integrated package, can be used with online transmitters, DTUs and portable instruments

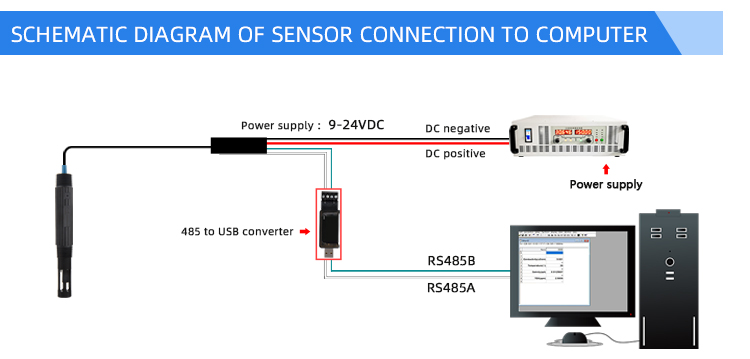

● RS485 interface, Modbus RTU protocol, support access to standard industrial control systems

● The Conductivity Sensor has a protection level of IP68 and can work continuously and stably underwater for a long time

Product Name	Digital conductivity sensor
Product Model	DEC790
Brand Name	Daruifuno
Signal Type	Digital RS485 Modbus
Measuring Range	Conductivity: 0~10mS/cm
	TDS: 0~5g/L
	Salinity: 5ppt(‰)
	Temp: 0~50℃
Accuracy	± 1% FS
Resolution	0.01μS/cm? ?0.1℃
Response Time	T90＜15s
Temperature Compensation	Automatic, built-in temperature unit
Calibration Method	Multi-point calibration; Contrast Offset; Factor offset
Working Pressure	0~6Bar
Operating Temperature	0~50℃
Shaft Material	PPS
Dimensions	Diameter 35mm/Total length 234 mm( include the cleaning cover)
Lead interface	One-piece or split M16 connector
Installation?	1 inch NPT at both ends; Immersed or piped installation
Power Supply	9~24V DC
Protection Grade	IP68
Weight	220g

?
