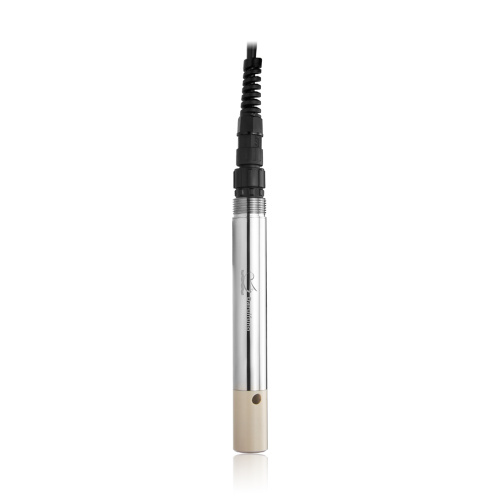

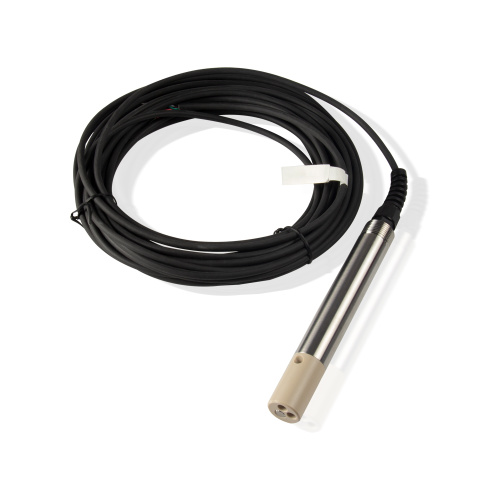

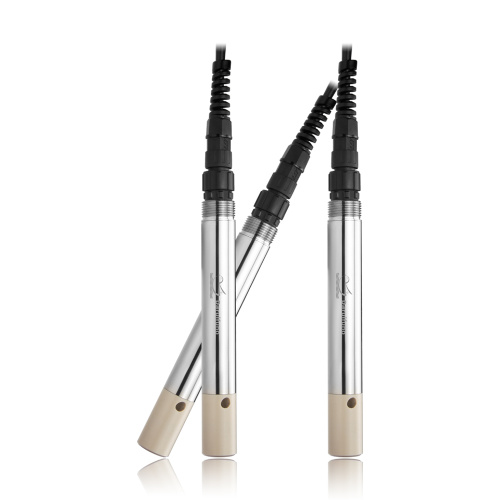

4-electrode digital online conductivity sensor for water

4-electrode digital online conductivity sensor for water

Get Latest Price

Measuring range	0~100mS/cm
option	5 meters other cable length
Contact Now

Model No.: DEC351

Brand: Daruifuno

Certification: ISO9001

Signal Type: Modbus

Measuring Range: 0~100mS/cm

Working Pressure: 0~6bar

Working Temperature: 0~50℃

Temperature Compensation: Automatic

Accuracy: 1% of full scale

Shaft Material: Ti+PEEK+Nickel

Support Customization: Oem

Place Of Origin: China

Power Supply: 6~12V DC

Dimension: Diameter 23mm/Length 180mm

Product Name: Digital conductivity sensor

Description

Product Description

The conductivity of seawater refers to the comprehensive reflection of the concentration and types of electrolytes contained in seawater. Therefore, monitoring the conductivity of seawater can reflect the content and changes of dissolved substances in seawater. This is of great significance to the protection of the marine environment and the development of marine resources. Therefore, the conductivity value of seawater needs to be monitored.

This DEC351 Digital Conductivity Sensor uses the principle of 4 electrodes, which has a wider measurement range than the traditional two-electrode Conductivity Sensor, which can reach 100mS/cm. Another advantage of the 4-electrode conductivity sensor is that it can eliminate the influence of resistance between electrodes, thereby reducing errors and improving measurement accuracy. In addition, this conductivity sensor is a titanium alloy shell, which is corrosion-resistant and has a longer service life.

Features

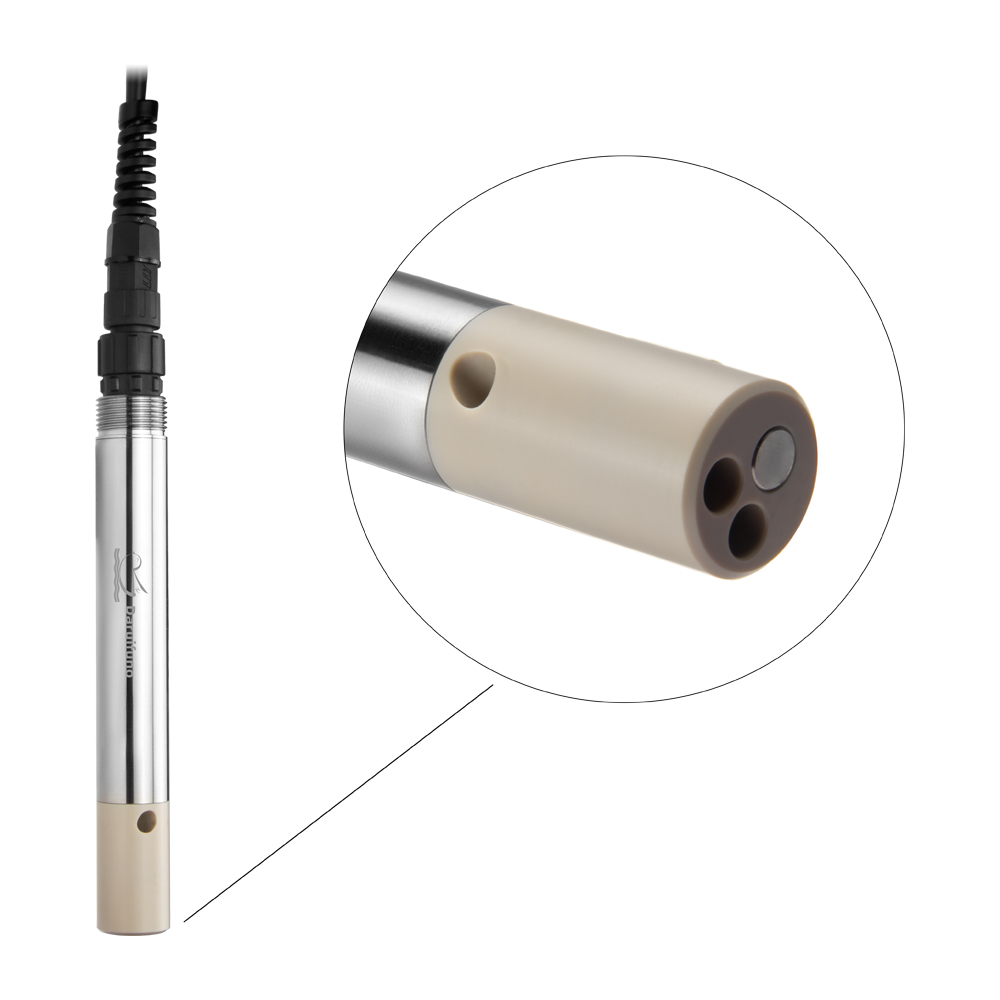

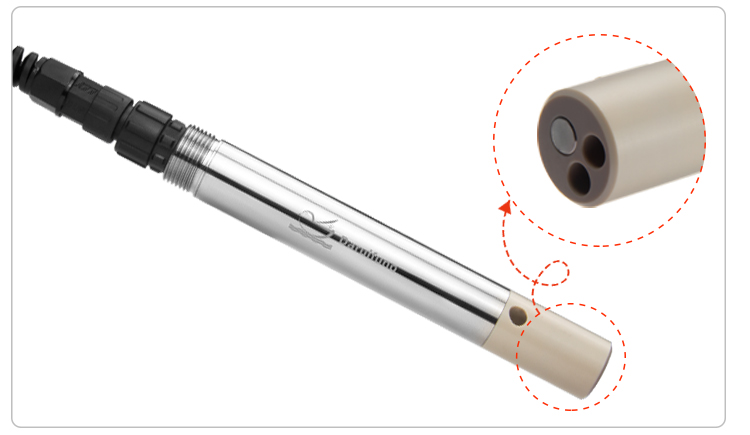

● Conductivity cell 4-electrode, automatic range switching, easy to clean

● Protection grade IP68, can work continuously under water for a long time

● Standard Modbus protocol, support access to standard industrial control system
● No polarization, can be used continuously online
● Extremely wide range, wider application
● Very resistant to pollution, strong anti-interference ability
● Stable measurement and higher accuracy
● Strong and durable structure, the digital conductivity sensor has longer service life

Specification

Product Name	Digital conductivity sensor
Product Model	DEC351
Brand Name	Daruifuno
Signal Type	Digital
Measuring Range	0~100mS/cm
	0~100mS/cm
	0~50℃
Accuracy	±1%FS
Resolution	0.1 uS/cm
Temperature Compensation	Automatic, built-in temperature unit
Communication	Modbus RTU, RS485 interface
Calibration Method	Contrast Bias Correction; Factor Correction
Working Pressure	0~6Bar
Operating Temperature	0~50℃
Power Supply?	6~12V DC
Shaft Material	Ti+PEEK+Nickel
Dimensions	Diameter 23mm/length 180 mm
Installation	Submersible; Thread specifications: M22*1.5mm
Protection Grade	IP68
Weight	200g
