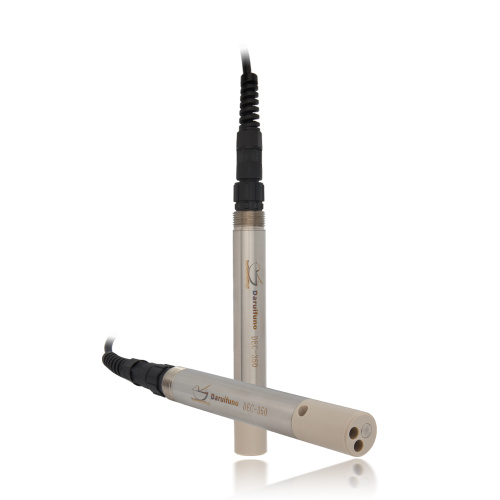

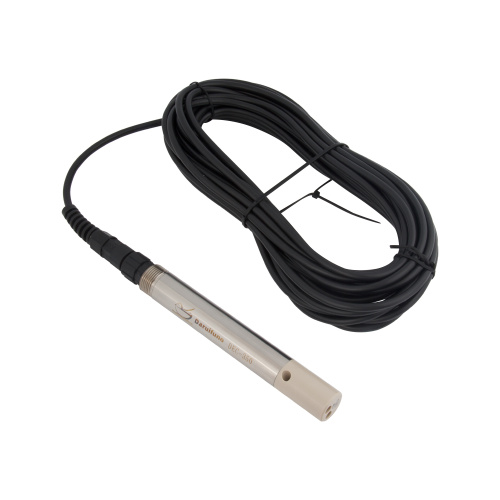

Liquid Conductivity Sensor & Liquid Conductivity Probe
Liquid Conductivity Sensor & Liquid Conductivity Probe
Liquid Conductivity Sensor & Liquid Conductivity Probe
Liquid Conductivity Sensor & Liquid Conductivity Probe
Liquid Conductivity Sensor & Liquid Conductivity Probe
Liquid Conductivity Sensor & Liquid Conductivity Probe

Liquid Conductivity Sensor & Liquid Conductivity Probe

Get Latest Price
    Share:

    Model No.DEC351

    Typedigital conductivity sensor

    Customized SupportOem

    Brand NameDaruifuno

    Model NumberDEC351

    Product Nameconductivity sensor

    Signal TypeDigital

    Measuring Range0~100mS/cm

    Working Pressure0~6bar

    Working Temperature0~50℃

    Temperature CompensationAutomatic

    Accuracy1% of full scale

    Shaft MaterialTi+PEEK+Nickel

    DimensionDiameter 22mm/Length 147mm

    CommunicationRS485 Modbus

    Description
    Product Description
    Liquid Conductivity Sensor, also called liquid Conductivity Probe, is a precision instrument used to measure the conductive properties of liquid. Its core function is to accurately reflect the conductivity characteristics of liquid by detecting the conductivity of ions in liquid. This sensor plays an important role in many fields, such as environmental monitoring, industrial production, food safety and medical research. In environmental monitoring, it can help us understand the water quality in a timely manner and determine whether the water body is polluted; in industrial production, the conductivity of process liquids can be monitored in real time to ensure the stability of the production process and product quality; and in the field of food safety, by detecting the conductivity in food, its freshness and shelf life can be indirectly evaluated. In addition, liquid conductivity sensors also have the advantages of high precision, high stability and easy maintenance, making them an indispensable and important tool in various scientific research experiments and industrial production.
    ?
    ?

    Features Of Conductivity Sensor

    Protection grade IP68, can work continuously under water for a long time
    Standard Modbus protocol, support access to standard industrial control system
    No polarization, can be used continuously online
    Extremely wide range, wider application
    Very resistant to pollution, strong anti-interference ability
    Stable measurement and higher accuracy
    Strong and durable structure, longer service life
    ?

    Specification Of Conductivity Sensor

    Product Name
    Product Model
    DEC351
    Brand Name
    Daruifuno
    Signal Type
    Digital
    Measuring Range
    Automatic switch:
    0~5000 μS/cm
    0.0 ~100.0 mS/cm
    0~50℃
    Accuracy
    1% of full scale
    Resolution
    0.01μS/cm? ?0.1℃
    Temperature Compensation
    Automatic, built-in temperature unit
    Communication
    Modbus RTU, RS485 interface
    Calibration Method
    2-point calibration
    Working Pressure
    0~6Bar
    Operating Temperature
    0~50℃
    Shaft Material
    Ti+PEEK+Nickel
    Power Supply
    5~12V DC, current<50mA
    Installation
    Submersible; Thread specifications: M22*1.5mm
    Dimensions
    Diameter 22mm/length 147 mm
    Protection Grade
    IP68
    Weight
    200g
    ?

    FAQ

    1. What is the measuring principle of the conductivity sensor?

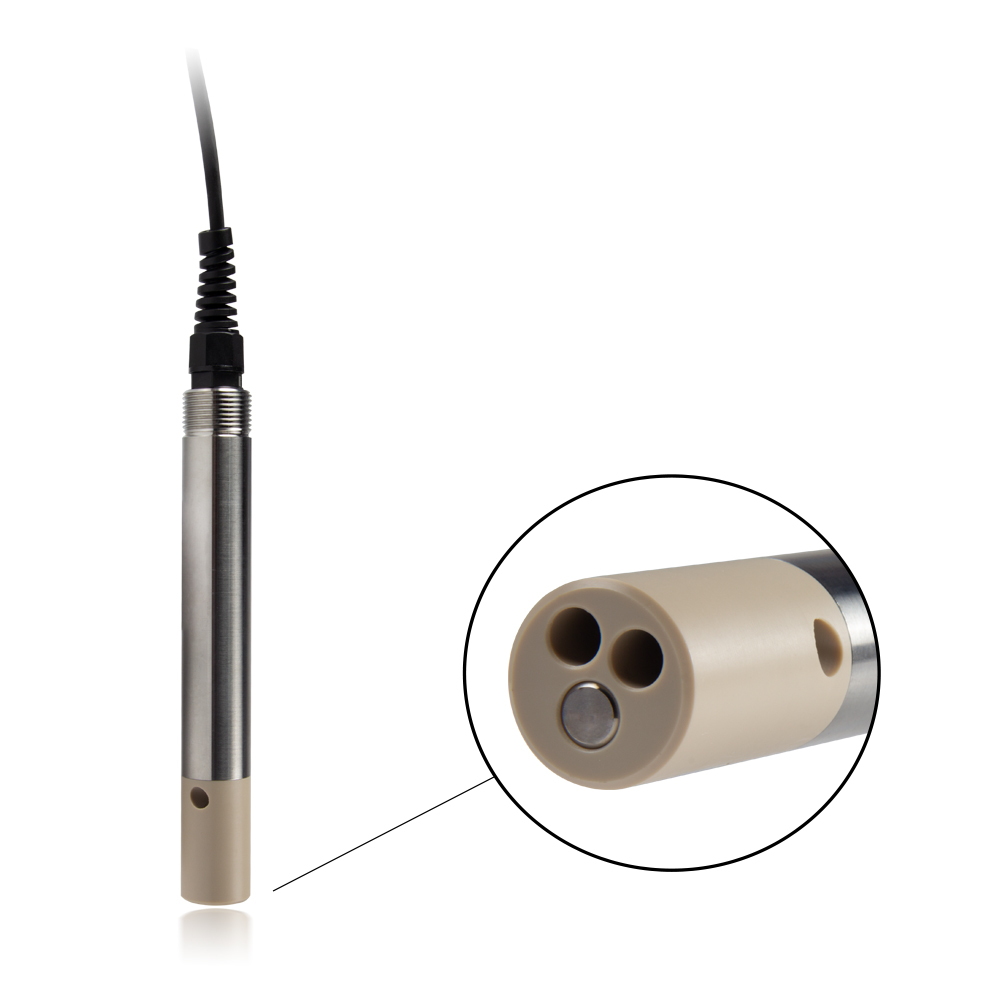

    A: Conductivity cell 4-electrode
    ?
    2. What is the advantage of digital conductivity sensor?
    A: The digital conductivity sensor is conducive to long-distance signal transmission without serious signal attenuation. The sensor has RS485 interface, standard Modbus RTU communication protocol.
    ?
    3. Can the conductivity sensor work under water?
    A: Certainly. The protection grade of the conductivity sensor is IP68, it can work under water for a long time.
    ?

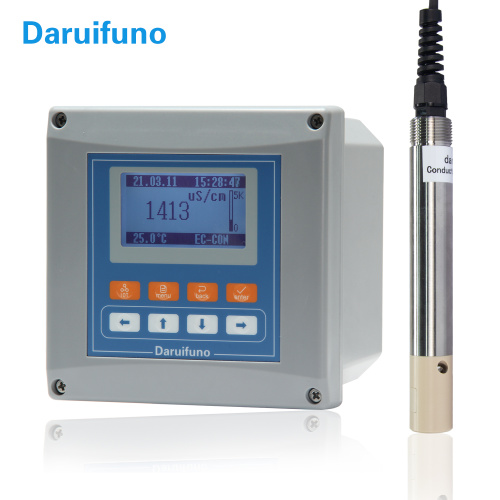

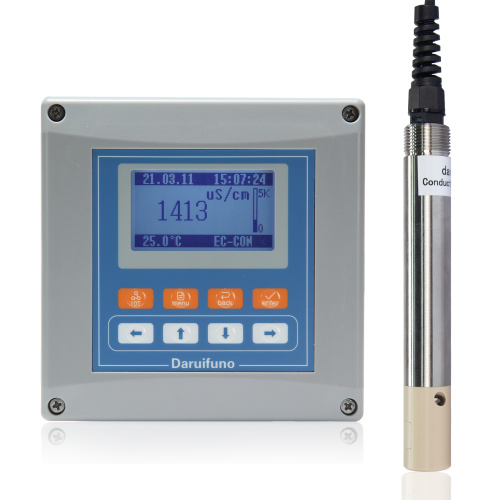

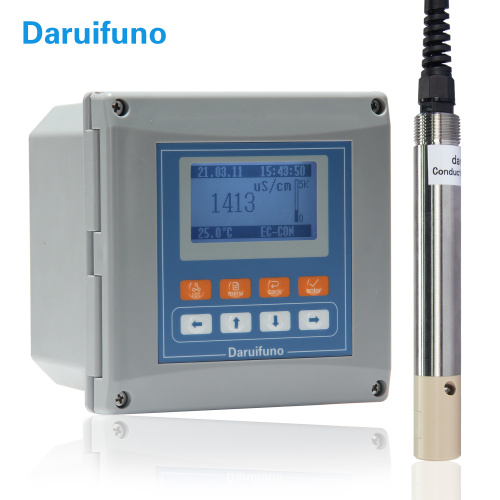

    4.Can this Conductivity Controller measure the resistivity, TDS and salinity of water?
    A:Our controller can measure the conductivity, resistivity, TDS and salinity of water. Because there is a relationship between these quantities.
