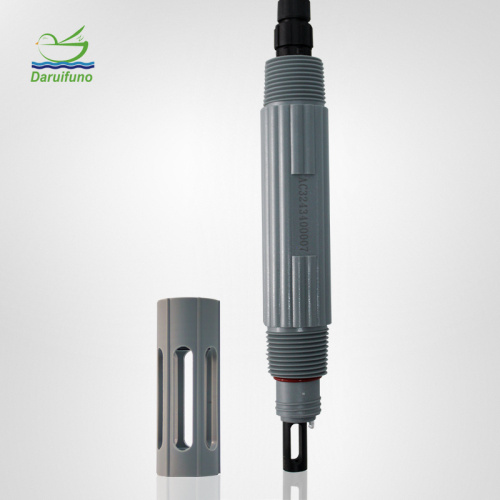

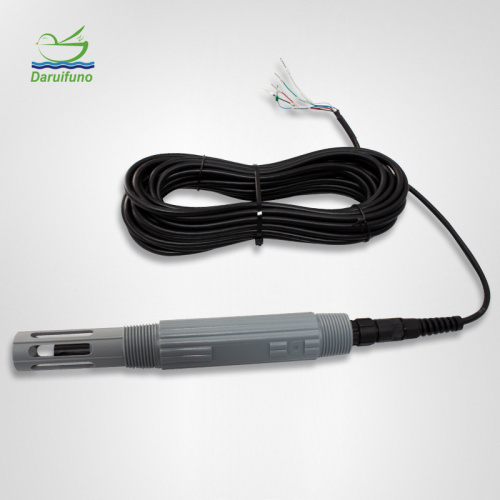

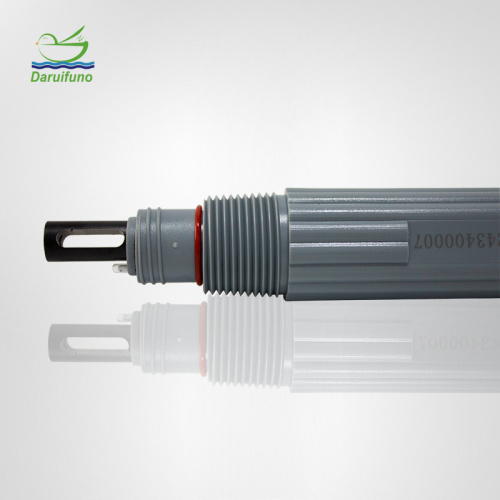

ABS Graphite 2-electrode Conductivity Sensor probe Sewage

ABS Graphite 2-electrode Conductivity Sensor probe Sewage

Get Latest Price

option	PT1000 NTC10K
Contact Now

Model No.: ASC300N

Brand: daruifuno

Certification: ISO9001

Product Name: conductivity sensor

Principle: Graphite 2 electrode

Working Pressure: 0~4Bar

Temperature Compensation: Automatic

Temperature Unit: PT1000/NTC10K

Shaft Material: ABS

Support Customization: Oem

Place Of Origin: China

K Constant: K=1

Measuring Range: 0~10mS/cm

Working Temperature: 0~80℃

Dimension: Diameter 35mm/Length 200mm

Description

Product Description

Conductivity is an important indicator that reflects the concentration of ions in water and can be used to detect changes in water quality. In the process of domestic sewage treatment, monitoring the conductivity value can help us understand the content of dissolved substances in sewage, detect abnormal water quality in time, and take timely measures to deal with it. In addition, conductivity values can be used to evaluate the performance and efficiency of wastewater treatment equipment for optimization and improvement. The ASC300 conductivity electrode is made of graphite, which has high sensitivity and strong corrosion resistance. It can operate stably for a long time in harsh environments, is not easy to be corroded, and has a relatively long life. A temperature compensation unit is installed inside the electrode, and connect with the Conductivity Controller AEC1-T?can realize temperature detection and compensation. The ABS shell is relatively stable and durable in sewage. The Conductivity Sensor has 1-inch threads at both ends for easy installation.

Features Of Conductivity Sensor

● Graphite 2-pole conductivity electrode

● Good electrical and thermal conductivity

● Good chemical stability at room temperature

● Plastic case electrode, solid structure, both ends have mounting threads, easy to install

● Built -in temperature sensor PT1000 for temperature compensation

● The electrode is equipped with a protective cover, it can be quickly connected to the automatic cleaning system

Specification Of Conductivity Sensor

Product Name	Conductivity sensor
Product Model	ASC300
Principle	Graphite 2-pole?
Signal Type	analog
Principle	2-electrode
K constant	K=1
Measuring Range	0~10mS/cm
Temperature Compensation	PT1000
Working Pressure	0~4Bar
Operating Temperature	0~60℃@4Bar, 0~80℃@2Bar
Shaft Material	ABS
Dimensions	Diameter 35mm/length 200 mm
Installation Method	1” NPT
Cable	Default 5 meters, other length can be customized

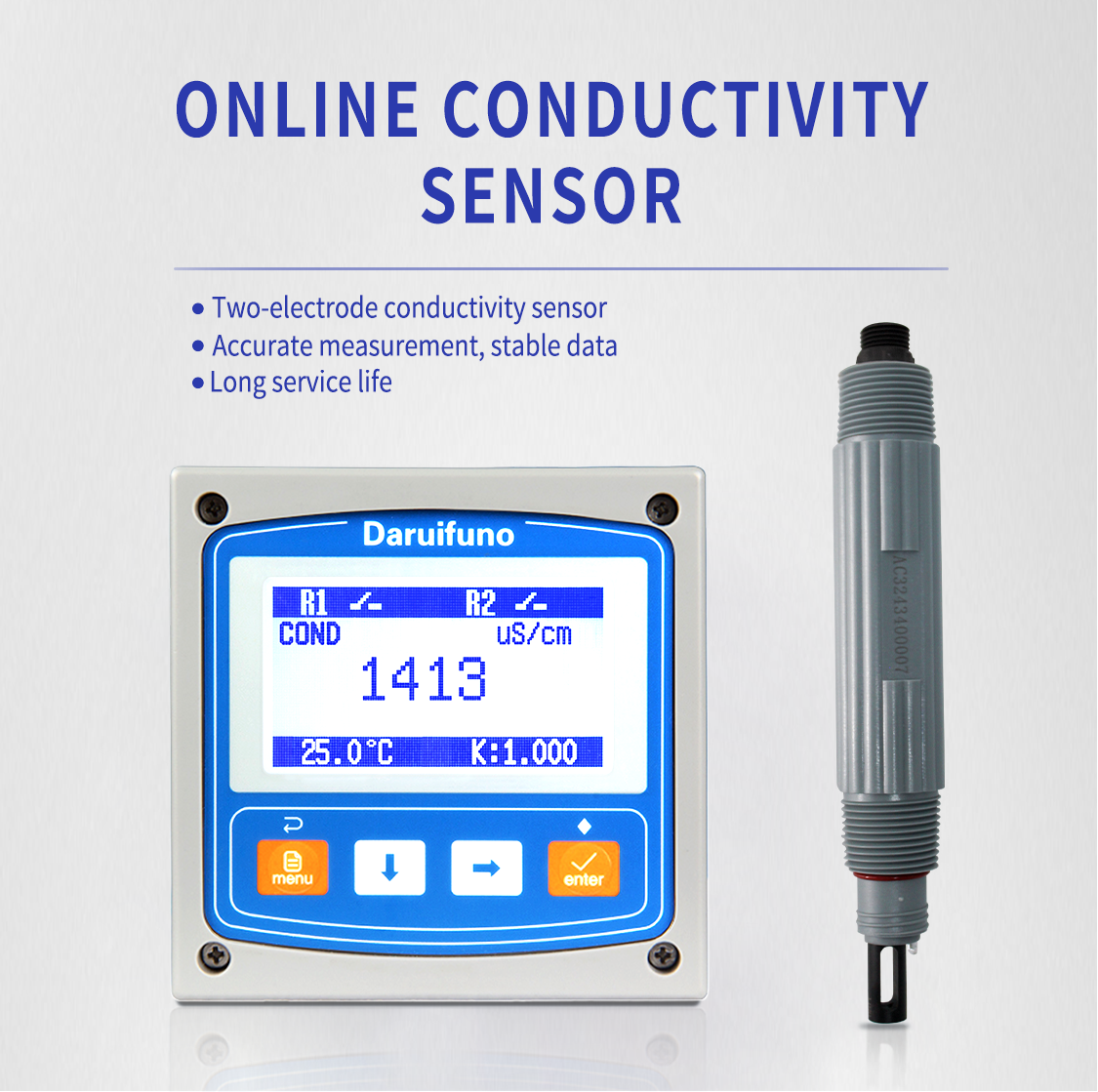

online conductivity controller and electrode

Application:

graphite conductivity sensors offer strong chemical stability, excellent corrosion resistance, and relatively low cost. They are suitable for the following application:

Chemical and petrochemical industries: acid and alkaline solution preparation and circulation, corrosion wastewater treatment and solvent purity monitoring.

Electroplating and surface treatment industries: plating bath maintenance and pickling/phosphating bath monitoring.

Power industry: boiler feed and circulating water, desulfurization wastewater treatment

Pharmaceutical and food industries: food processing wastewater, such as that from dairy and juice processing.

Environmental and municipal treatment: municipal wastewater treatment, influent/effluent monitoring, reclaimed water reuse, and environmental emergency monitoring.

Our company focuses on the R&D, production and sales of water quality analysis instruments. Our main products include online pH ORP analyzer, conductivity analyzer, turbidity analyzer, dissolved oxygen analyzer, COD analyzer, ammonia analyzer, etc. If you need water treatment related products, please contact us.
