UV254nm Online COD BOD TSS Controller for Sewage Plant



UV254nm Online COD BOD TSS Controller for Sewage Plant

Get Latest Price

Measuring range	0~1500mg/L
option	100~240V 18~36V
Contact Now

Model No.: DUC2-COD

Brand: Daruifuno

Certification: ISO9001

Support Customization: Oem

Place Of Origin: China

Product Name: online COD controller

Communication: RS485 Modbus RTU

Display: 3.2 inch

Data Recording: 10000 historical data

Material: enhanced ABS

Dimension: 144*144*120mm

Description

Product Description

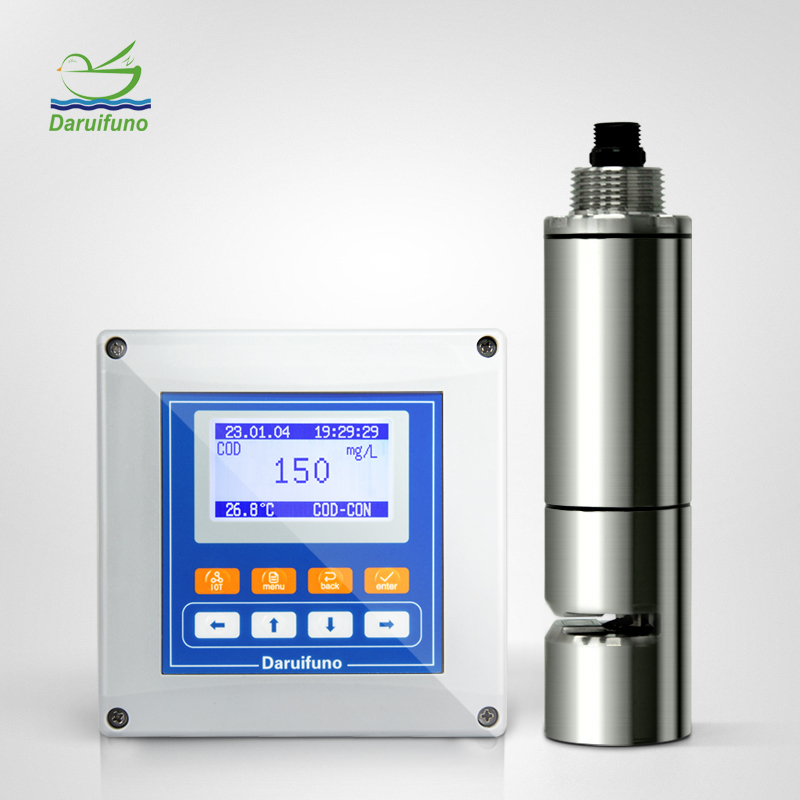

The online? COD Controller meter for water quality mainly detects the amount of oxygen required when organic matter in water samples is oxidized by strong oxidants. This indicator is an important parameter for measuring the degree of organic pollution in water bodies, and is usually used to evaluate the pollution status of water bodies and the effect of water treatment processes. COD analyzers are widely used for the determination and early warning of chemical oxygen demand in tap water and factory water to help evaluate water quality. The DUC2-COD online COD controller is used with the COD351 Optical UV COD Sensor. It does not require reagents, is pollution-free, economical and environmentally friendly, can monitor water quality online continuously, and automatically compensate for turbidity interference. The advantage of using it with a controller is that the self-cleaning function can be set on the controller. The COD Sensor comes with a cleaning brush, and the cleaning time and cleaning interval can be set on the controller to realize the underwear automatic cleaning function. Daruifuno online COD controller can also realize the numerical conversion of BOD. You only need to set the factor to switch the BOD value. In addition, this COD online analyzer also has two 4-20mA current outputs, which can realize control or output functions. The controller supports wide voltage power supply and has time and historical data recording functions, making it very suitable for on-site use.
Usually, the detection principle of traditional water quality COD instruments usually adopts potassium dichromate method or potassium permanganate method. These methods are to react with organic matter in the water sample through strong oxidants, consume a certain amount of oxidants, and the calculate the COD value in the water sample by measuring the remaining amount of oxidants. The Optical COD Sensor does not require reagents and can quickly and in real time measure COD value in the water. Of course, the accuracy is worse than that of traditional methods. However, the overall measurement is the trend of COD changes to prompt the addition of appropriate measures for adjustment. In addition to being able to measure and display COD values. The turbidity value is used as compensation and cannot be used as a basis for accurate measurement. The value of TOC and BOD are converted from the values of COD.

Specification

Product Name	COD (chemical oxygen demand) controller
Display Rang	0-1500mg/L
Resolution	0.01mg/L??
Relay Control	2 settable SPST relays with a maximum load of 3A/250VAC
Analog Current Output	2 settable 0/4~20mA active current loop outputs, max load 1000Ω
Communication Method	RS485 interface; MODBUS RTU; support JSON text data format
Display Screen	128*64 LCD, adjustable backlight mode, adjustable display rate
Configuration Information	Power off protection, parameters are retained indefinitely
Time/Data Record	Record 10000 historical data
Operating Temperature	0～60℃，RH<95% ( no condensation)
Shell Material	Enhanced ABS
Protection Grade	IP66
Dimension	144144120mm
Mounting Method	Wall mounting, pipe clamping, panel (hole size 138*138 mm)
Power Supply	100~240V AC? 50/60Hz or 18~36V DC
Power Consumption	7W

online COD controller

Delfino focuses on the research and development and production of water quality instruments. Our main products include pH ORP analyzer, conductivity analyzer, turbidity analyzer, COD analyzer, dissolved oxygen analyzer, ammonium analyzer, chlorine analyzer, etc. We not only provide water quality analysis instruments but also provide related industry application solutions. Using online COD sensors for monitoring can continuously monitor changes in organic matter concentration in water bodies, detect water pollution incidents in a timely manner, and provide data support for water quality management.? According to the real-time monitoring results of COD, the water treatment process can be adjusted in a timely manner to ensure that the effluent quality is stable and meets the standards. By monitoring the COD values in different areas, the pollution status of the water body can be evaluated, providing a decision-making basis for environmental protection and governance.?
