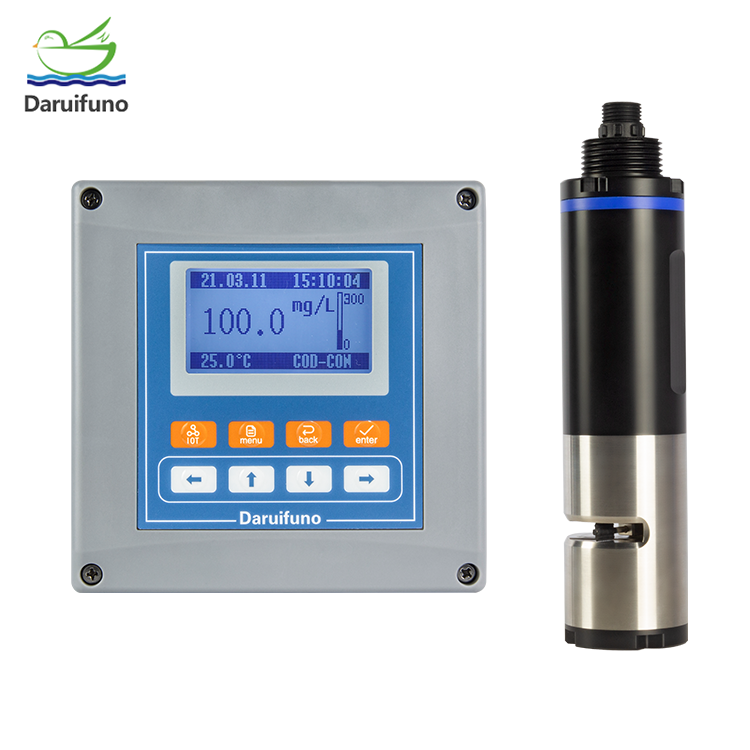

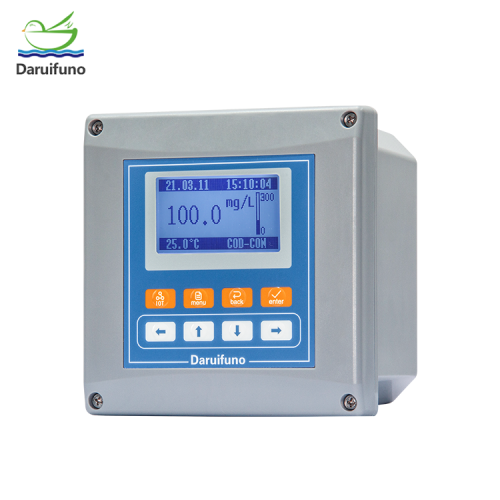

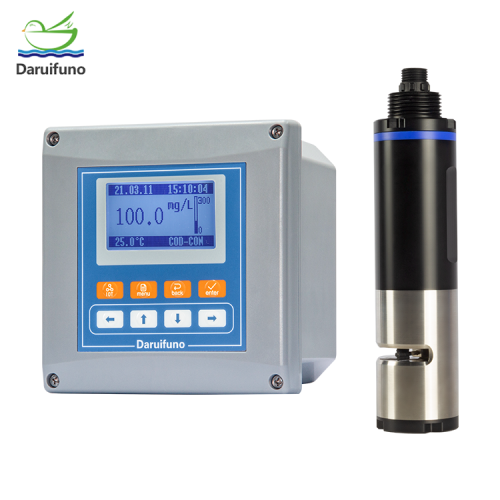

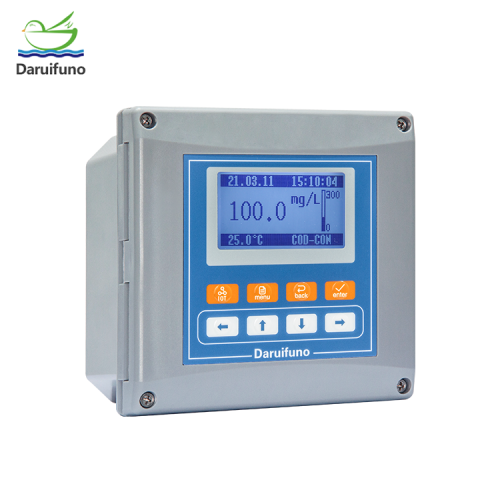

Digital COD controller & Digital COD transmitter



Digital COD controller & Digital COD transmitter

Get Latest Price

Measuring range	0~1500mg/L
option	AC 100~240V DC 18~36V
Contact Now

Model No.: DUC2-COD

Brand: Daruifuno

Certification: ISO9001

Resolution: 0.01mg/L

Dimension: 144*144*120mm

Support Customization: Oem

Place Of Origin: China

Relay Control: 2 settable SPST relays

Current Output: 2 settable 0/4~20mA outputs

Communication Method: RS485 interface; Modbus RTU communication protocol

Display Screen: 128*64 3.2-inch large LCD screen, adjustable display rate

Time/Data Record: Record 10000 historical data

Operating Temperature: 0～60℃，RH<95%

Protection Grade: IP66, enhanced ABS

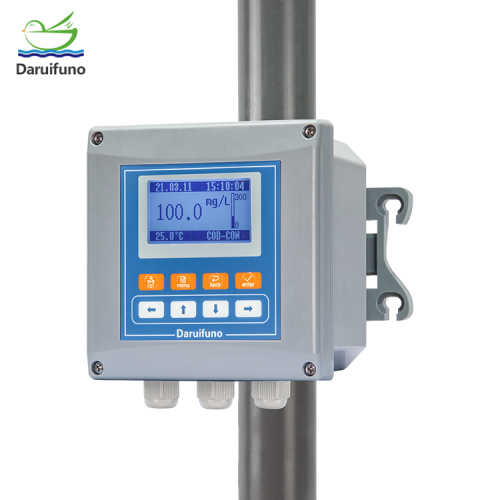

Mounting Method: Wall mounting, pipe clamping, panel (hole size 138*138 mm)

Description

Product Description

Definition and Function

Digital COD Controller, also called digital COD transmitter, is a device specially designed to test and control the chemical oxygen demand (COD) level. It receives data from the COD Sensor and uses the built-in software algorithm to intelligently adjust various parameters in the detection process to ensure the accuracy and reliability of the detection results.

Working Principle

The working principle of the digital COD controller mainly relies on the ultraviolet UV absorption method. Specifically, it uses the COD sensor to measure the absorbance of sewage at a wavelength of 254nm, and accurately converts the COD concentration value through the established relationship between absorbance and COD concentration. This method not only does not require the use of any reagents and avoids secondary pollution, but also has low cost of use, simple operation and maintenance, low failure rate, and short testing time.

Main Features

Compatibility: The digital COD controller is compatible with all Daruifuno brand digital COD sensors, which is convenient for users to select and replace.

Multi-parameter display: In addition to displaying COD parameters, it can also display parameters such as TOC, TU and BOD to provide users with comprehensive water quality information.

Data recording function: It has time and historical data recording functions, which is convenient for users to view and analyze water quality changes at any time.

Large screen display: It uses a 3.2-inch large LCD screen with clear display, which is convenient for users to read data.

User-friendly interface: It provides an English interface, which is simple and intuitive to operate and convenient for users to use.

Password protection: It supports setting passwords to prevent misoperation and ensure data security.

Multiple installation methods: It supports multiple installation methods, which is convenient for users to flexibly configure according to actual needs.

Application field

The digital COD controller has a wide range of application value in water quality monitoring, environmental assessment, industrial wastewater treatment and other fields. It can quickly and accurately measure the organic matter content in water, which is one of the important comprehensive indicators for evaluating the degree of water pollution. By real-time monitoring and analysis of water quality data, the digital COD controller provides strong support for water quality monitoring and management.

In summary, the digital COD controller is an efficient, accurate and convenient water quality monitoring equipment, which plays a vital role in the field of water quality monitoring.
