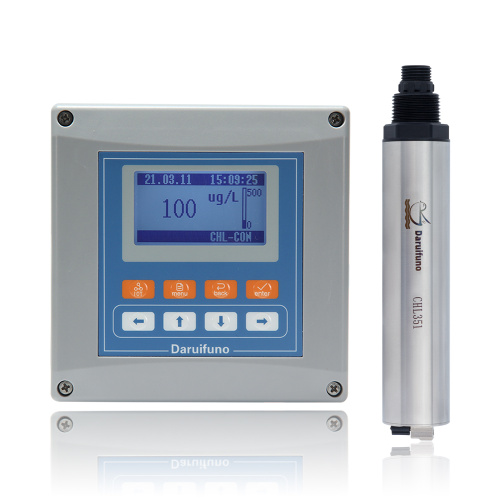

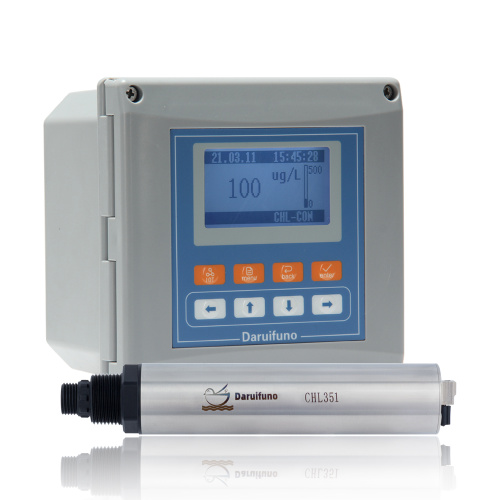

4-20mA fluorescence online chlorophyll meter water

4-20mA fluorescence online chlorophyll meter water

Get Latest Price

option	AC 100~240V DC 18~36V
Contact Now

Model No.: DUC2-CHL

Brand: daruifuno

Certification: ISO9001

Product Name: online chlorophyll meter

Current Output: 0/4~20mA

Communication: RS485 Modbus RTU

Display: 3.2 inch

Data Recording: 10000 historical data

Material: enhanced ABS

Dimension: 144*144*120mm

Support Customization: Oem

Place Of Origin: China

Display Range: 0~9999ug/L

Resolution: 0.1μg/L

Certification: ISO9001,CE

Description

Product Description

The DUC2-CHL Chlorophyll Controller?uses the characteristics of chlorophyll fluorescence to excite chlorophyll a in water with a 470nm light source to produce fluorescence, and measure the fluorescence intensity in the range of 660 to 700nm to calculate the concentration of chlorophyll a in the water. The meter is?compatible with all DRFN digital chlorophyll sensors. The dimension is 120*120*100mm, support a variety of installation methods. The chlorophyll analyzer is widely used for surface water, lakes, rivers and seawater. We have the multiparameter controller which can connect different sensors at the same time to measure the water quality.

Features Of Chlorophyll Meter

● The working status of the sensor can be queried by the CHL controller, including reading the serial number;

● Time and historical data recording function;

● 3.2-inch large LCD screen, easy operation;

● User-friendly English language interface;

● Password can be set to prevent misoperation;

● 2 SPST multi-function and settable relays to realize dosing control;

● Two 0/4~20mA active current loop outputs;

● RS485 interface, Modbus RTU communication protocol;

● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;

Specification Of Chlorophyll Meter

Product Name	Digital Chlorophyll Meter
Product Model	DUC2-CHL
Brand Name	Daruifuno
Display Rang	0~9999ug/L
Resolution	0.1ug/L
Relay Control	2 settable SPST relays with a maximum load of 3A/250VAC
Analog Current Output	2 settable 0/4~20mA active current loop outputs, max load 1000Ω
Communication Method	RS485 interface; MODBUS RTU; support JSON text data format
Display Screen	128*64 LCD, adjustable backlight mode, adjustable display rate
Configuration Information	Power off protection, parameters are retained indefinitely
Time/Data Record	Record 10000 historical data
Maintenance Records	Last 100
Operating Temperature	0～60℃，RH<95% ( no condensation)
Storage Temperature	-20～70℃, RH<55% ( no condensation, precision instruments)
Shell Material	Enhanced ABS
Protection Grade	IP66
Dimension	144144120mm
Mounting Method	Wall mounting, pipe clamping, panel (hole size 138*138 mm)
Electrical Interface	The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm
Power Supply	100~240V AC or 18~36V DC
Power Consumption	7W
Weight	800g
