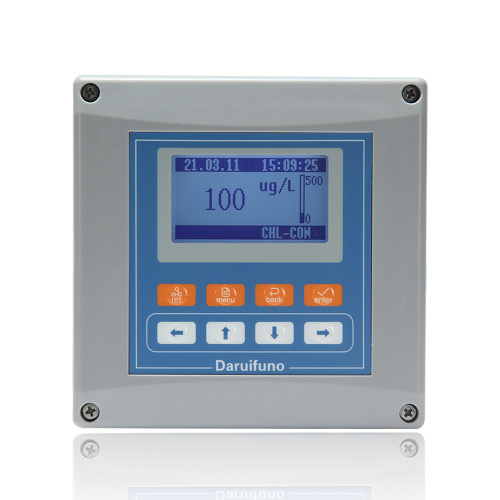

Automatic Cleaning Online Water Chlorophyll Meter

Get Latest Price

Measuring range	0~500ug/L
option	AC 100~240V DC 18~36V
Contact Now

Model No.: DUC2-CHL

Brand: daruifuno

Certification: ISO9001

Display Range: 0~500ug/L or 0~100RFU

Resolution: 0.01ug/L

Current Output: 0/4~20mA

Communication: RS485 Modbus RTU

Data Recording: 10000 historical data

Material: enhanced ABS

Dimension: 144*144*120mm

Support Customization: Oem

Place Of Origin: China

Display: 3.2 inch LCD

Description

Product Description

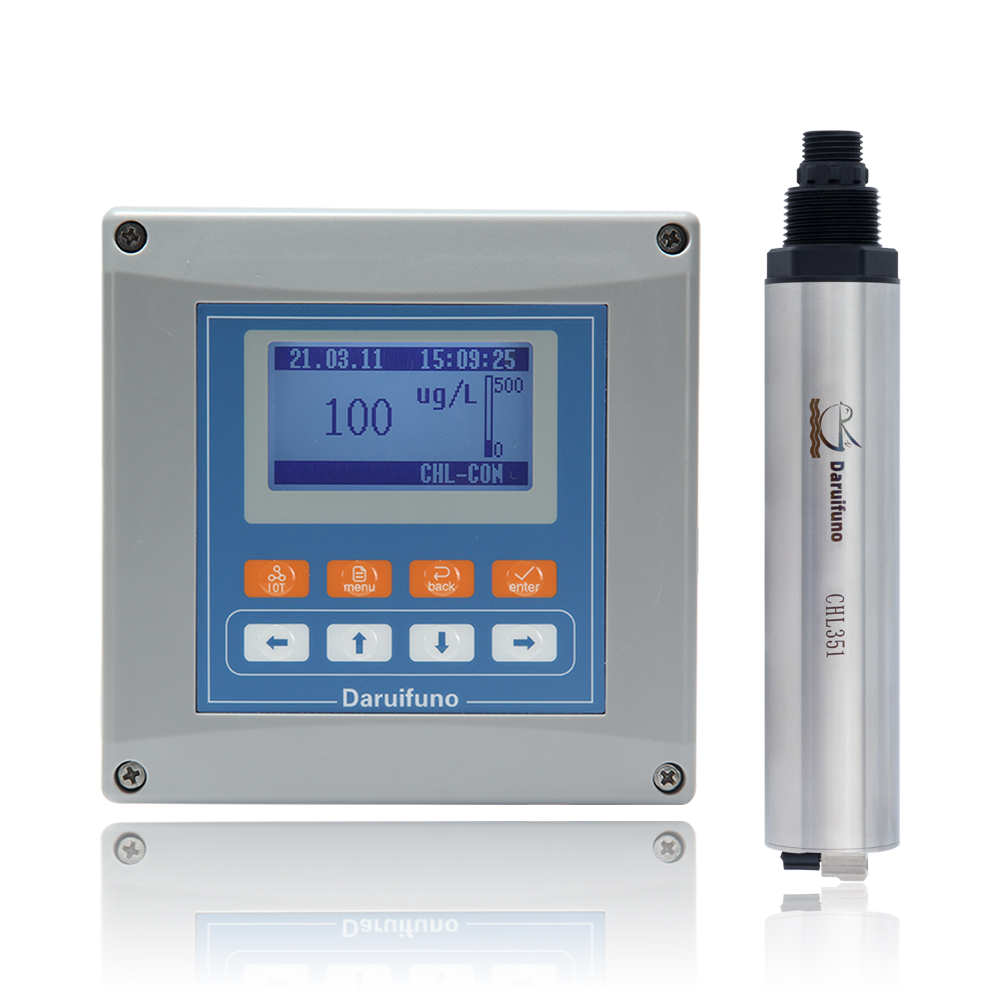

The absorption spectrum of the visible light band of chlorophyll has a significant absorption peak in blue light and red light, and the position of the absorption peak and the size of extinction value vary with the chlorophyll species. One of the strongest absorption spectrum regions is in the red part with a wavelength of 640nm-660nm, and the other in the blue-violet part with a wavelength of 420nm-450nm, almost no absorption of green light, so chlorophyll is green under transmitted light, but red under reflected light, which is the fluorescence emitted by chlorophyll after being excited by light. The DUC2-CHL chlorophyll meter can be connect with the fluorescence Chlorophyll Sensor to measure water chlorophyll a value.
Because chlorophyll a is present in all green plants, it is one of the most commonly used indicators for characterizing phytoplankton biomass in environmental testing, and is often used to study eutrophication of water quality, when the content of chlorophyll a is greater than 10ug/L, the water body has been eutrophic. Fluorescence analysis method is mainly to detect chlorophyll a in chlorophyll, when chlorophyll a molecules are irradiated with ultraviolet light can emit characteristic red fluorescence, its fluorescence intensity is proportional to the concentration of chlorophyll a, so this method can quantitatively analyze chlorophyll a.

Features

Daruifuno's chlorophyll analyzer uses the characteristics of chlorophyll fluorescence to excite chlorophyll a in water with a 470nm light source to produce fluorescence, and measure the fluorescence intensity in the range of 660 to 700nm to calculate the concentration of chlorophyll a in the water.

● Compatible with all DRFN digital chlorophyll sensors;

● The working status of the sensor can be queried by the CHL controller, including reading the serial number;

● Support a variety of installation methods;

● Time and historical data recording function;

● 3.2-inch large LCD screen, easy operation;

● User-friendly English language interface;

● Password can be set to prevent misoperation;

● 2 SPST multi-function and settable relays to realize dosing control;

● Two 0/4~20mA active current loop outputs;

● RS485 interface, Modbus RTU communication protocol;

● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;

● Separately have a list of controller and sensor settings for quick and detailed parameter setting.

Specification

Product Name	Chlorophyll Meter
Product Model	DUC2-CHL
Brand Name	Daruifuno
Display Rang	0~500ug/L or 0~100RFU
Resolution	0.01ug/L
Relay Control	2 settable SPST relays with a maximum load of 3A/250VAC
Analog Current Output	2 settable 0/4~20mA active current loop outputs, max load 1000Ω
Communication Method	RS485 interface; MODBUS RTU; support JSON text data format
Display Screen	128*64 LCD, adjustable backlight mode, adjustable display rate
Configuration Information	Power off protection, parameters are retained indefinitely
Time/Data Record	Record 10000 historical data
Operating Temperature	0～60℃，RH<95% ( no condensation)
Storage Temperature	-20～70℃, RH<55% ( no condensation, precision instruments)
Shell Material	Enhanced ABS
Protection Grade	IP66
Dimension	144144120mm
Mounting Method	Wall mounting, pipe clamping, panel mounting (hole size 138*138 mm)
Electrical Interface	The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm
Power Supply	100~240V AC 50/60Hz or 18~36V DC
Power Consumption	7W
Weight	800g
