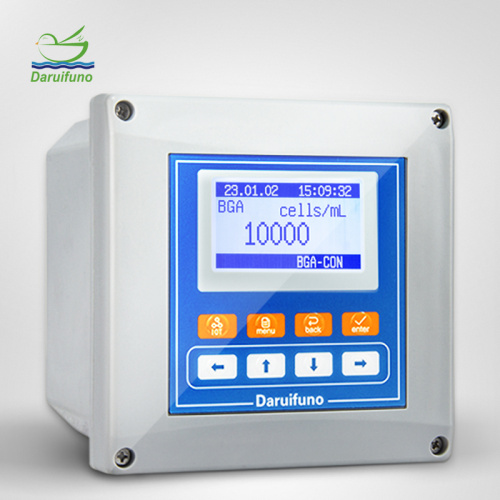

RS485 Online Digital Blue-green Algae Meter for Lakes

RS485 Online Digital Blue-green Algae Meter for Lakes

Get Latest Price

option	AC 100~240V DC 18~36V
Contact Now

Model No.: DUC2-BGA

Brand: daruifuno

Certification: ISO9001

Product Name: online BGA meter

Resolution: 1cells/mL

Current Output: 4~20mA

Communication: RS485 Modbus RTU

Display: 3.2 inch

Data Recording: 10000 historical data

Material: enhanced ABS

Dimension: 144*144*120mm

Support Customization: Oem

Place Of Origin: China

Display Range: 0~9999999 cells/mL

Certification: ISO9001,CE

Description

Product Description

The blue green algae analyzer adopts the fluorescence method which is a method for detecting blue-green algae in water bodies. The principle is to use the absorption and fluorescence emission characteristics of chlorophyll a and phycocyanin and other pigments contained in blue-green algae to specific wavelengths of light, and determine the concentration of blue-green algae in water by measuring the fluorescence intensity. Specifically, the method uses a special luciferin that can bind to the pigment of blue-green algae to undergo a fluorescent reaction and generate a fluorescent signal. The concentration of blue-green algae is determined by the intensity of the fluorescent signal, so as to evaluate the blue-green algae pollution of the water body. The Blue Green Algae Controller can realize the function of control, it has two relays and 4-20mA current output. The BGA Controller also has RS485 interface to realize the data output. The dimension of the controller is 144*144*120mm, it supports a variety of installation methods.

Features

● Compatible with all DRFN digital Blue Green Algae Sensor;

● Time and historical data recording function;

● 2 SPST settable relays to realize control;

● Two 0/4~20mA current outputs;

● RS485 interface, Modbus RTU protocol;

● IP66 protection grade.

Specifications

Product Name	Digital BGA Meter
Display Rang	0~9999999cells/mL
Resolution	1cells/mL
Relay Control	2 settable SPST relays maximum load of 3A/250VAC
Analog Current Output	2 settable 0/4~20mA current loop outputs, max load 1000Ω
Communication Method	RS485 interface; MODBUS RTU
Display Screen	128*64 3.2 inch LCD, adjustable display rate
Configuration Information	Power off protection, parameters are retained indefinitely
Time/Data Record	Record 10000 historical data
Maintenance Records	Last 100
Operating Temperature	0～60℃，RH<95%
Storage Temperature	-20～70℃, RH<55%?
Shell Material	Enhanced ABS
Protection Grade	IP66

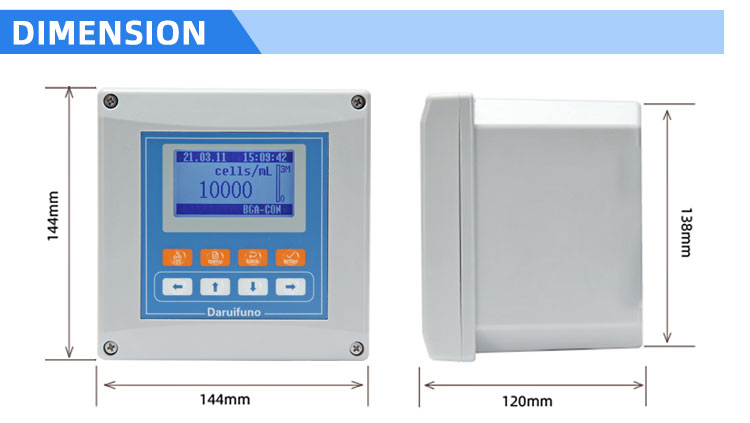

Dimension	144144120mm
Mounting Method	Wall mounting, pipe clamping, panel (hole size 138*138 mm)
Power Supply	18~36V DC or 100~240V AC
Power Consumption	24W

blue green algae meter

Our company has been focusing on the research and development and production of water quality analysis instruments for more than 10 years. In addition to blue-green algae controller, we also have pH controller, Dissolved Oxygen Controller, Conductivity Controller, Turbidity Controller, multi-parameter controller, etc. Water quality instrument. If you want to know about our products, please contact us.
