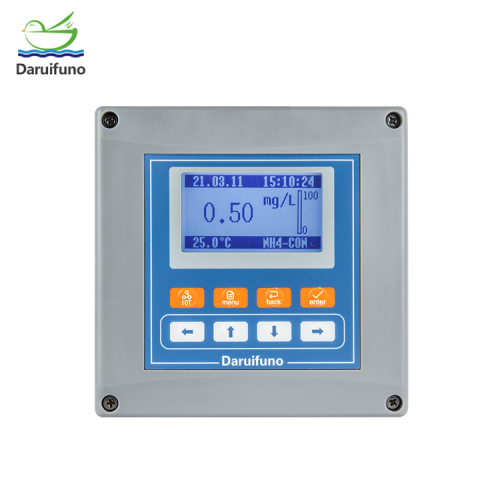

RS485 digital water ammonia meter controller for sewage



RS485 digital water ammonia meter controller for sewage

Get Latest Price

Measuring range	0~1000mg/L
option	AC 100~240V DC 18~36V
Contact Now

Model No.: DUC2-NH

Brand: daruifuno

Certification: ISO9001

Product Name: ammonia nitrogen analyzer

Signal Type: Digital

Resolution: 0.01mg/L

Relay Control: Two SPST relays

Communication: RS485 Modbus RTU

Display: 3.2 inch

Material: enhanced ABS

Dimension: 144*144*120mm

Support Customization: Oem

Place Of Origin: China

Display Range: 0-1000mg/L

Data Recording: 10000 historical data

Description

Product Description

The DUC2-NH Ammonia Controller of the Daruifuno brand can be connected with the ammonia nitrogen electrode of the ion selection method to realize real-time online monitoring of the ammonia nitrogen value of the water quality. Because ammonia nitrogen has an impact on water bodies, the content of ammonia nitrogen must be strictly monitored in the environmental protection industry. The online ammonia controller has two SPST relays, which can be connected with other devices to control the ammonia nitrogen value. One RS485 interface, supports Modbus communication protocol, and two 4-20mA current outputs, customers can transmit data. The ammonia nitrogen controller also has the function of time and history record, which is convenient for users to query and manage data.
Equipped with NH351 ion selection method Ammonia Sensor, with self-cleaning brush, the cleaning time and cleaning interval can be set on the ammonia nitrogen controller to realize the automatic cleaning function under water. The ammonia analyzer is widely used in breeding, waterworks, sewage plants and other occasions that need to monitor the ammonia nitrogen content.

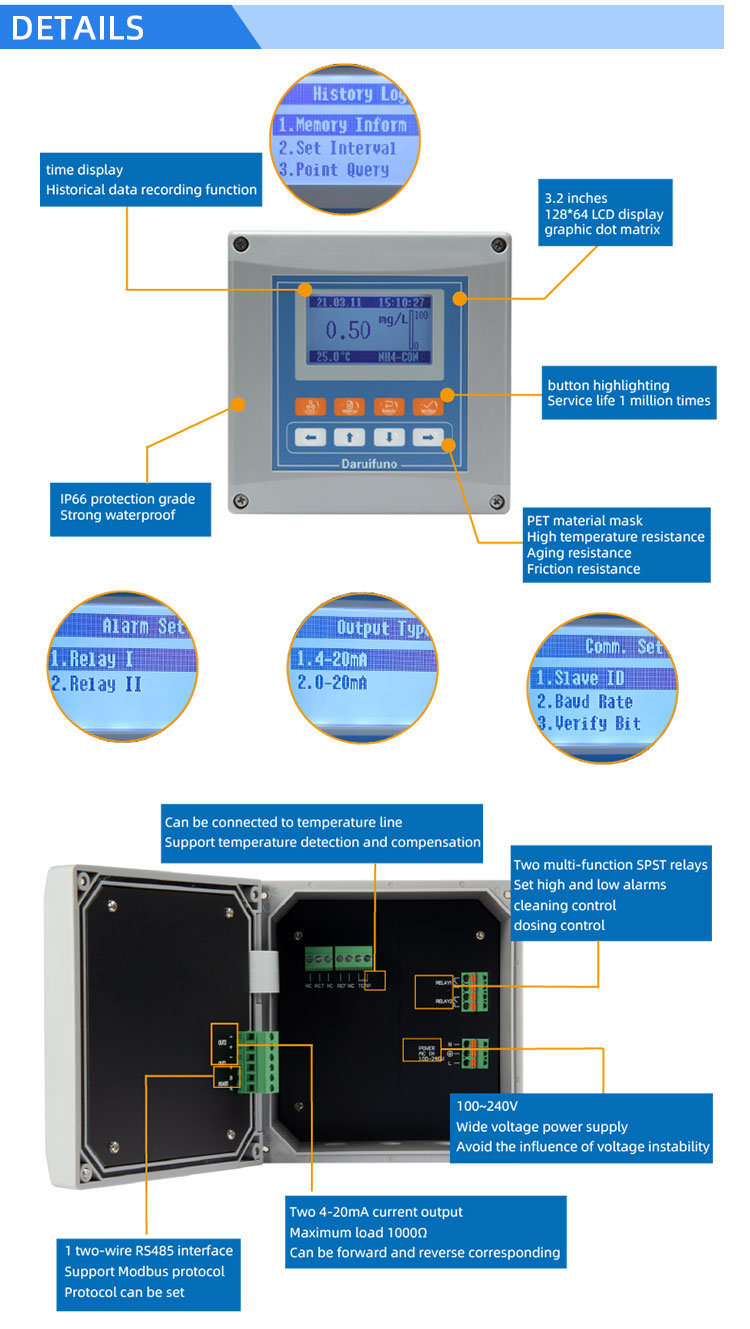

Features

● Compatible with all DRFN digital NH4-N sensors;

● The working status of the NH4-N sensor can be queried, including reading the serial number;

● Time and historical data recording function;

● Password can be set to prevent misoperation;
● 2 SPST multi-function and settable relays;
● Two 0/4~20mA active current loop outputs;
● RS485 interface of the ammonia controller, Modbus RTU communication protocol;
● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;
● Support a variety of installation methods.

Specification

Product Name	Ammonia nitrogen analyzer
Product Model	DUC2-NH-HA
Brand Name	Daruifuno
Display Rang	0-1000mg/L
Resolution	0.01mg/L??
Relay Control	2 settable SPST relays with a maximum load of 3A/250VAC
Analog Current Output	2 settable 0/4~20mA active current loop outputs, max load 1000Ω
Communication Method	RS485 interface; MODBUS RTU; support JSON text data format
Display Screen	128*64 LCD, adjustable backlight mode, adjustable display rate
Configuration Information	Power off protection, parameters are retained indefinitely
Time/Data Record	Record 10000 historical data
Maintenance Records	Last 100
Operating Environment	0～60℃，RH<95% ( no condensation)
Storage Environment	-20～70℃, RH<55% ( no condensation, precision instruments)
Shell Material	Enhanced ABS
Protection Grade	IP66
Dimension	144144120mm
Mounting Method	Wall mounting, pipe clamping, panel (hole size 138*138 mm)
Electrical Interface	The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm
Power Supply	100~240V AC or 18~36V DC
Power Consumption	7W
Weight	800g

Our company also provide online pH meters, conductivity meters, dissolved oxygen meters and turbidity meters. If you have any requirements, please contact us！
